Summary
Selecting the correct connection type and application ensures that PROFIS Engineering applies the appropriate design assumptions for geometry, load transfer, and detailing. These settings help define the structural scenario so your Post-installed rebar design reflects the actual project conditions.
Prerequisites
Make sure you:
- Are logged in to your PROFIS Engineering account
- Have opened the Post-installed rebar module
If needed, refer to the article How to access the Post-installed rebar module in PROFIS Engineering.
Step-by-step instructions
-
Open the Application tab

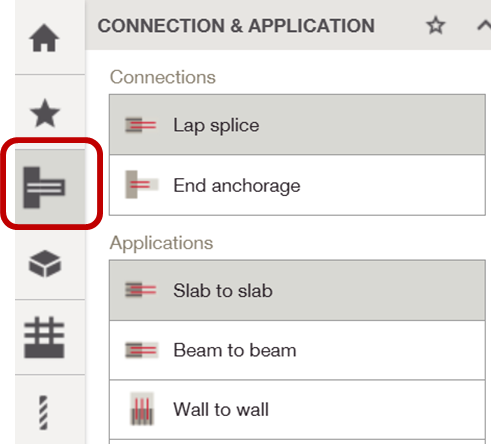

In your Post-installed rebar design workspace, go to the Application tab located on the left-hand side of the screen. -
Select connection type

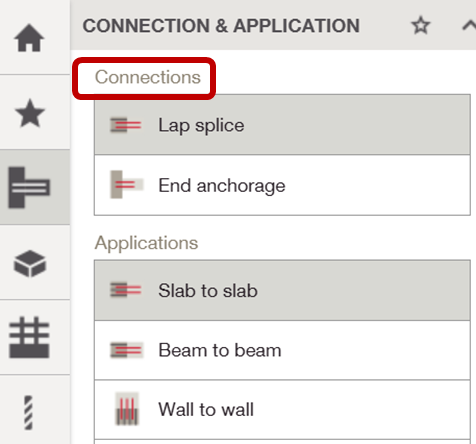

Under Connections & Applications, choose the Connection type that best fits your design scenario. -
Select an application

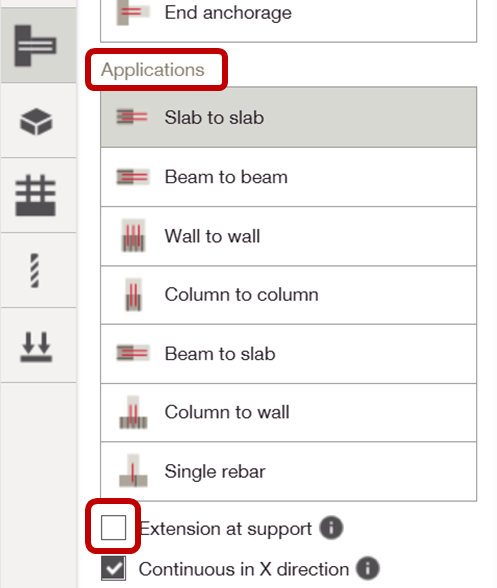

Under Connections & Applications, select the appropriate Application for your chosen connection type.
The available applications will update depending on the selected connection type.
If applicable, you can also enable Extension at support or Continuous in X direction. -
Rotate 3D model (Optional)

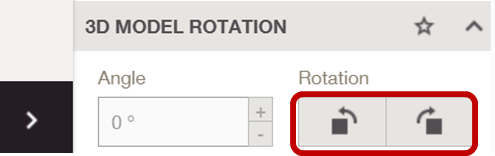

Under 3D Model rotation, use the rotation controls to turn the 3D model. Each click rotates the model by 90 degrees.
