Summary
Generating specification text allows PROFIS Engineering to create a formatted, project‑specific summary of product selection, rebar grade, installation length and other installation details. This specification text can be added directly to your project documentation to clearly communicate product details and design inputs to contractors, engineers, and reviewers.
Prerequisites
Make sure you:
- Are logged in to your PROFIS Engineering account
- Have opened the Post-installed rebar module
If needed, refer to the article How to access the Post-installed rebar module in PROFIS Engineering.
Step-by-step instructions
-

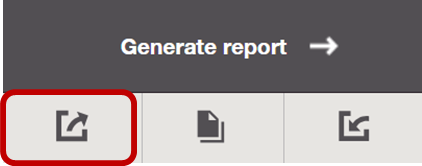

Click the Export icon
In your Post-installed design workspace, go to the panel on the right-hand side of the screen and click the Export icon. -
Select Specification Text
From the available export options, choose Specification Text. -

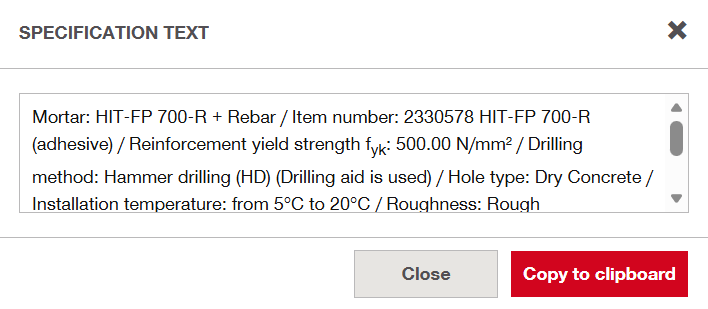

Copy the Specification Text
In the pop‑up window, click Copy to clipboard to copy the generated specification text.
