Summary
Prerequisites
Make sure you:
- Are logged in to your PROFIS Engineering account
- Have opened the Anchoring to Concrete module
If needed, refer to the article How to access the Anchoring to Concrete module in PROFIS Engineering
Step-by-step instructions
-

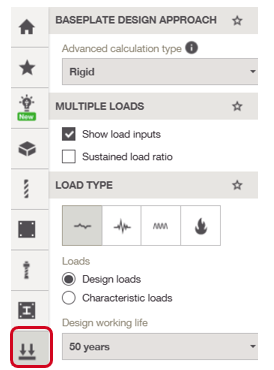

Go to Loads / Calculation Type
In the Anchoring to Concrete module, go to Loads / Calculation Type.
If needed, refer to the article. How to select load type and design method in Anchoring to Concrete module
-

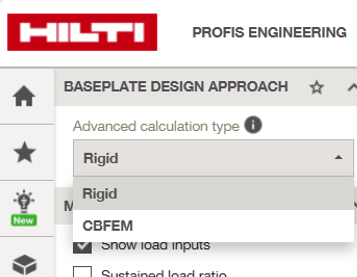

Go to Baseplate Design Approach
Under Advanced calculation type, select CBFEM Design from the dropdown menu.
-
Open the Advanced settings tab
Under Advanced settings, review and update the available settings as needed.
If needed, refer to the article. How to modify advanced anchor plate calculation settings
-

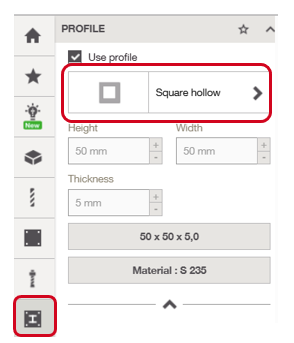

Open the Profiles tab
Select the desired attachment profile from the available options.
If needed, refer to the article. How to define attachment profile in Anchoring to Concrete module
-

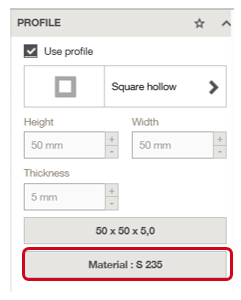

Open the Material tab

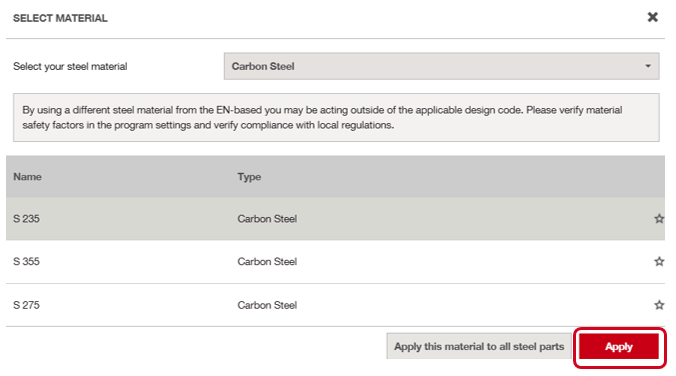

Select the desired profile material from the available options, then select Apply.
-

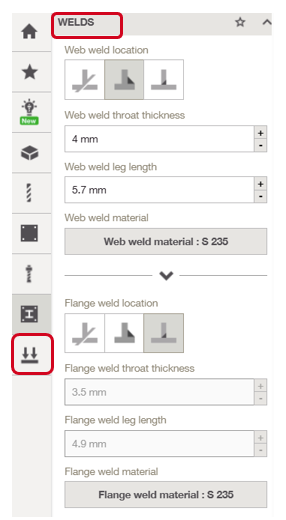

Go to Welds
Select the desired weld type, size, and material.
-

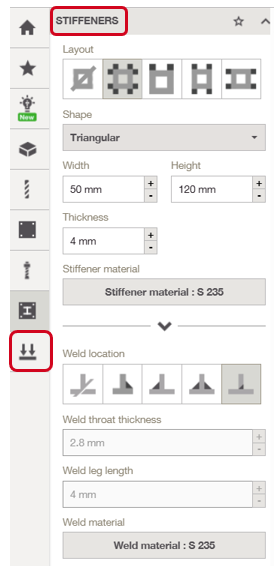

Go to Stiffeners (Optional)
Select the desired stiffener layout from the available options. When stiffeners are enabled, enter the required stiffener properties, including shape, width, height, thickness, and material. - Select Calculate to generate the design results.
Notes
- Weld and stiffener design options are available only when the CBFEM Design approach is selected.
- An attachment profile is required to perform a CBFEM analysis.
- Available profile types and materials may vary depending on the selected country settings.
