How to select load type and design method in Anchor channel module

Summary

Selecting the correct load type and design method ensures that PROFIS Engineering applies the appropriate assumptions for load behavior, design checks, and calculation models. These settings directly influence how loads are interpreted and how anchor forces, failure modes, and design capacities are evaluated.

Prerequisites

Make sure you:

Are logged in to your PROFIS Engineering account
Have opened the Anchor channel module
Have entered all design inputs

If needed, refer to the article How to access the Anchor channel module in PROFIS Engineering .

Step-by-step instructions

Go to Loads / Calculation Type

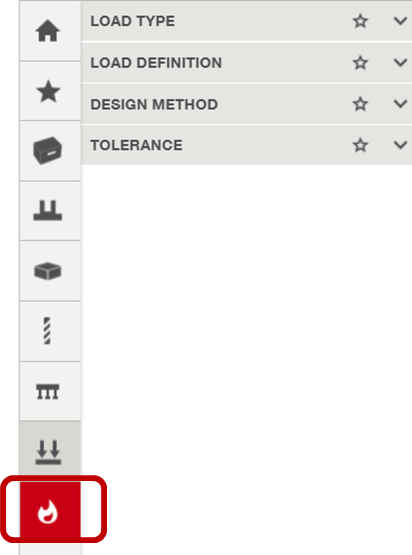

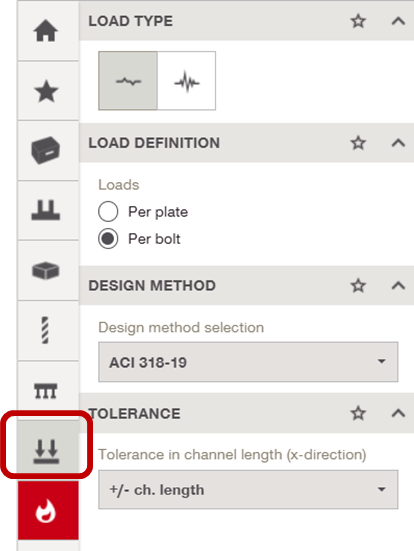

In your Anchor channel design workspace, go to the Load type tab on the left-hand side of the screen.
Select the Load type

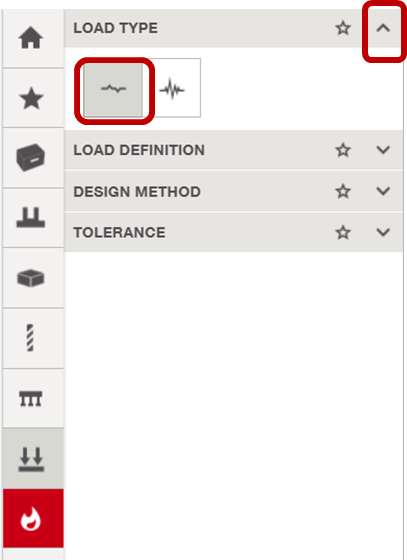

Go to Load type and select the desired option.
The Static load option is enabled by default.
Define Seismic load type (if applicable)

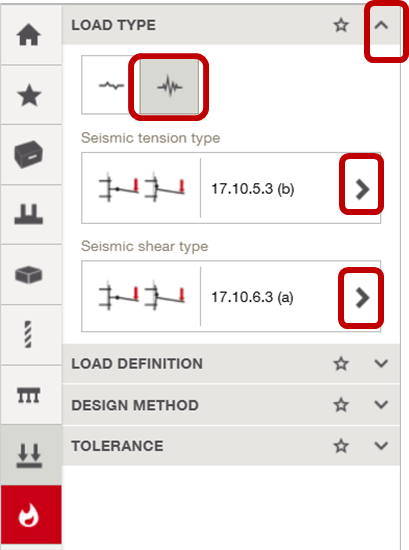

Go to Load type and select the seismic load option.
Select the seismic tension type from available options.
Select the seismic shear type from available options.
Select load input type

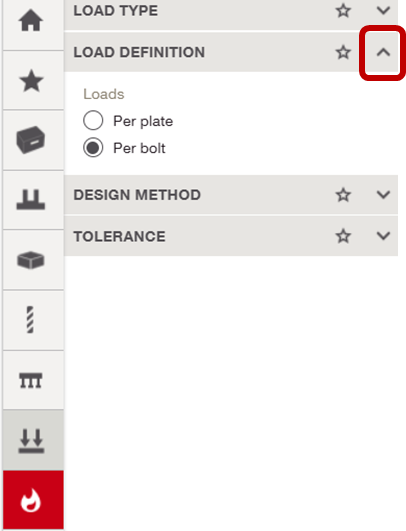

Go to Load definition and choose suitable load input type from available options.
Select the design method

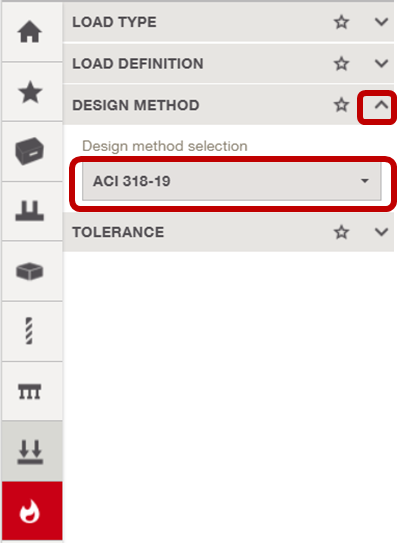

Go to the Design method and choose the desired option from the dropdown menu.
Define Tolerance

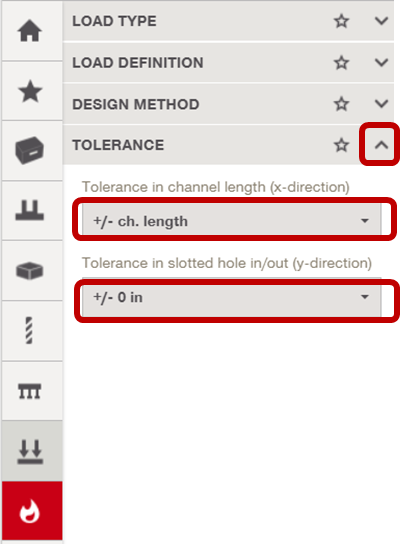

Go to Tolerance and select the suitable option from dropdown menu.
Note:
- This section in enabled only for Anchor channels and Cast-in anchors.
- The dropdown menu for Tolerance in slotted hole in/out becomes visible only when Load per plate input type is selected.
