How to modify baseplate position in Anchoring to Concrete module

Link copied!

Summary

Modifying the baseplate position in PROFIS Engineering allows you to rotate the baseplate to match the required orientation of the connection.


Prerequisites

Make sure you:

  • Are logged in to your PROFIS Engineering account
  • Have opened the Anchoring to Concrete module

If needed, refer to the article How to access the Anchoring to Concrete module in PROFIS Engineering.


Step-by-step instructions

  1. Open the Baseplate tab

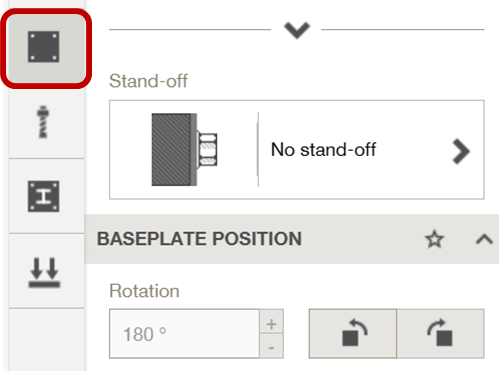

    In your Anchoring to Concrete design workspace, navigate to the Baseplate tab on the left-hand side of the screen.
  1. Go to Baseplate position
    Use rotation controls to turn the baseplate left or right. Each click rotates the plate by 90 degrees.
