How to define transverse reinforcement in existing concrete member in Post-installed rebar module

Prerequisites

Make sure you:

• Are logged in to your PROFIS Engineering account
• Have opened the Post-installed rebar module

If needed, refer to the article How to access the Post-installed rebar module in PROFIS Engineering.

Step-by-step instructions

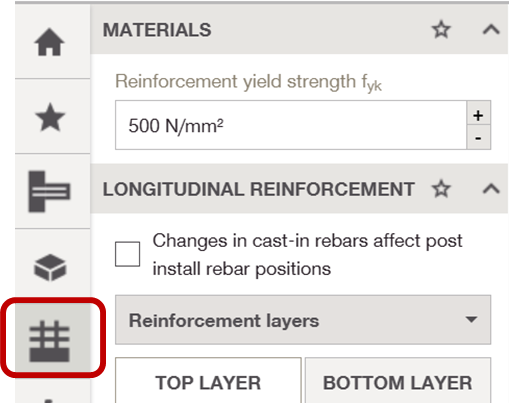

1. Open the Existing reinforcement tab
   In your Post-installed rebar design workspace, navigate to the Existing reinforcement tab on the left-hand side of the screen.



2. Define transverse reinforcement

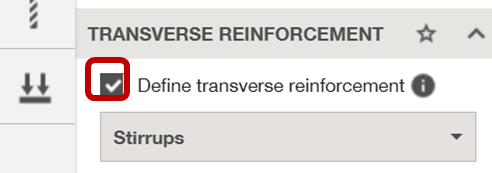

   Under Transverse reinforcement, enable Define transverse reinforcement if you want to provide detailed reinforcement inputs.

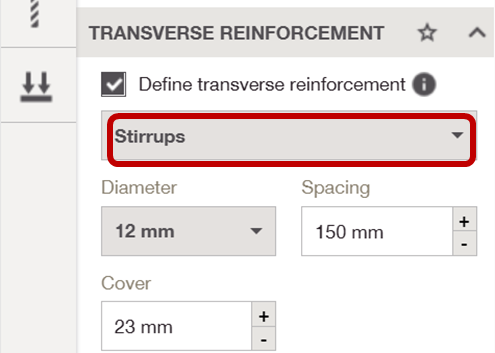

   Choose either Stirrups or Reinforcement layers from the dropdown menu.



3. Input transverse reinforcement details
   If Stirrups is selected, enter the following values: Diameter, Spacing and Cover.

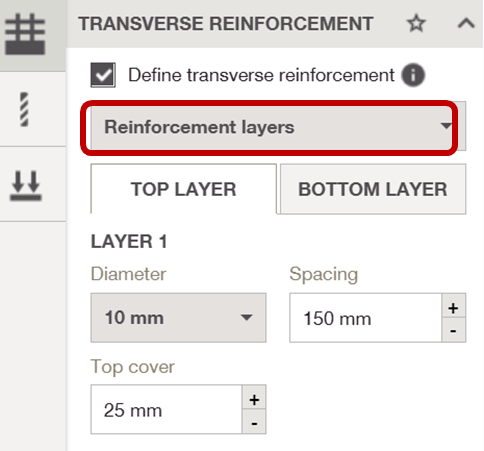

   If Reinforcement layers is selected, enter the following values for both top and bottom layers: Diameter, Spacing and Cover.



4. Define other rebar parameters

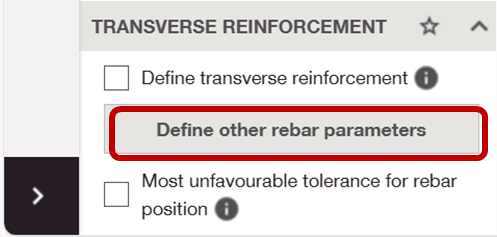

   Click on Define other rebar parameters.

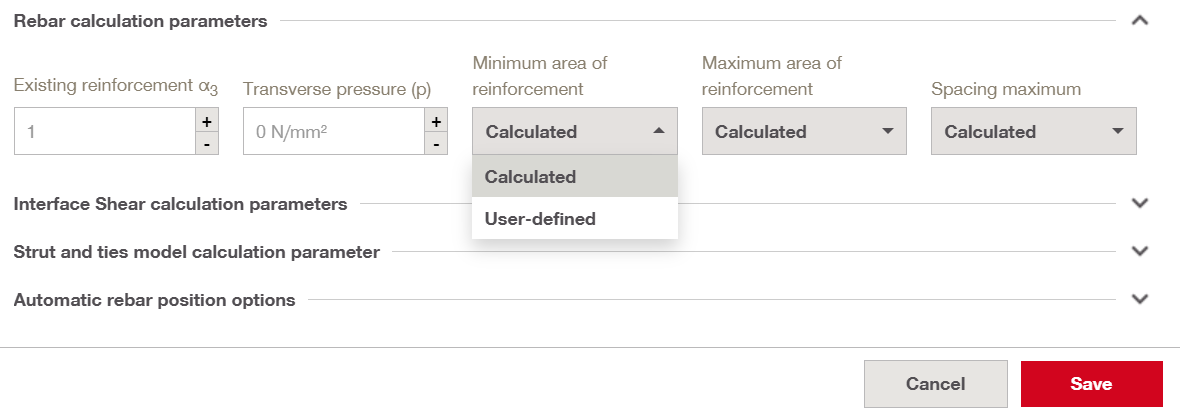

   In the pop‑up window, adjust the rebar calculation parameters as needed and click Save.



5. Additional information

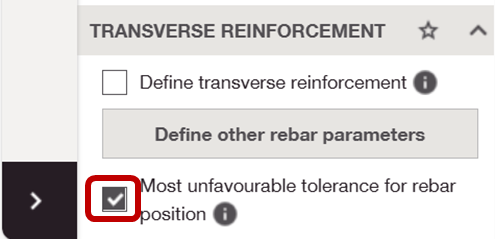

   Enable Most unfavourable tolerance for rebar position if applicable for your design scenario.
   Tip: Click the information (i) button for additional guidance.



Tip

Click the information (i) button for additional guidance on transverse reinforcement.
