Summary
The 3D view allows you to adjust the visual orientation of your model, edit geometry directly, apply loads, and select products - all within an interactive 3D environment.
Prerequisites
Make sure you:
- Are logged in to your PROFIS Engineering account
- Have opened the Anchoring to Masonry module
- Have enabled the 3D editor
If needed, refer to the article How to access the Anchoring to Masonry module in PROFIS Engineering.
Step-by-step instructions
-
Modify dimensions

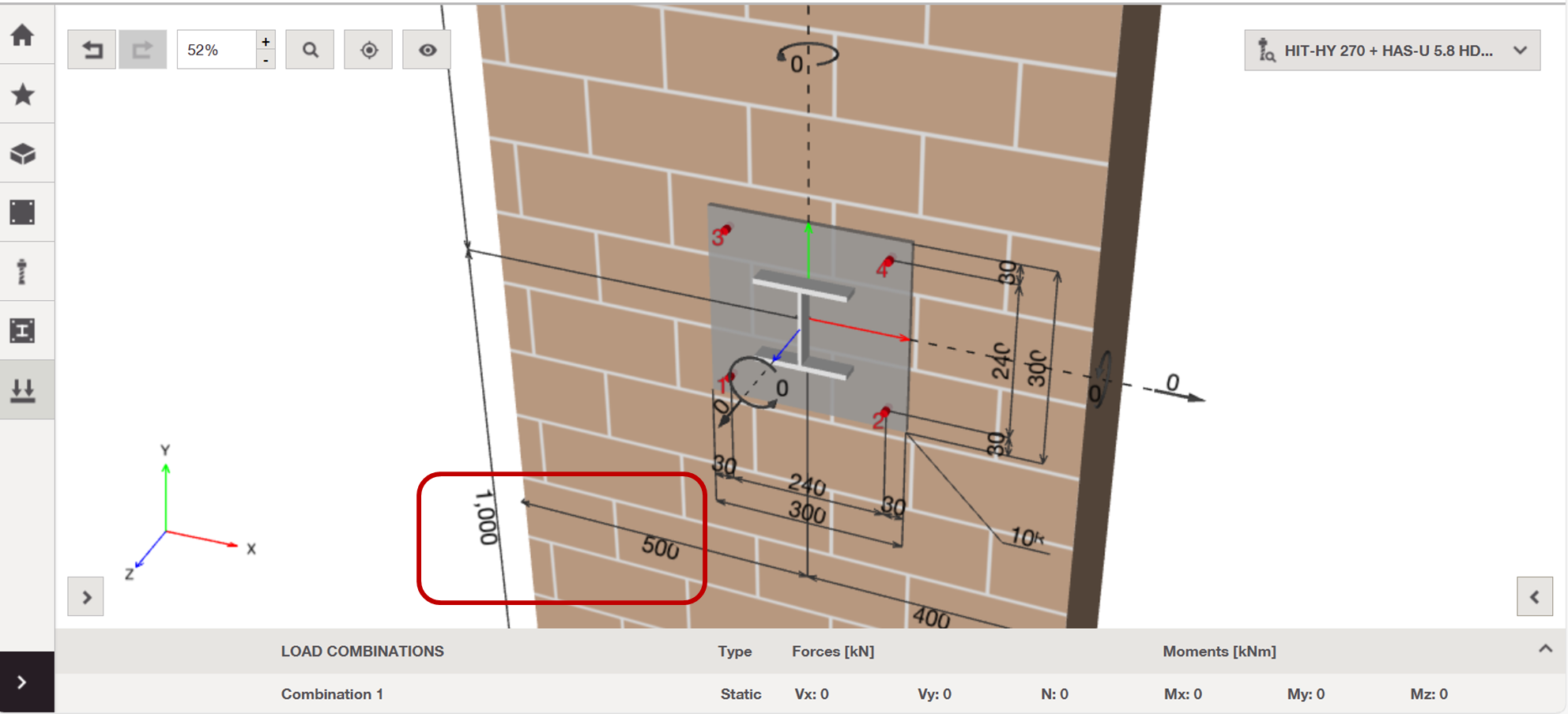

In the 3D view, click directly on any dimension label to edit. -
Input loads

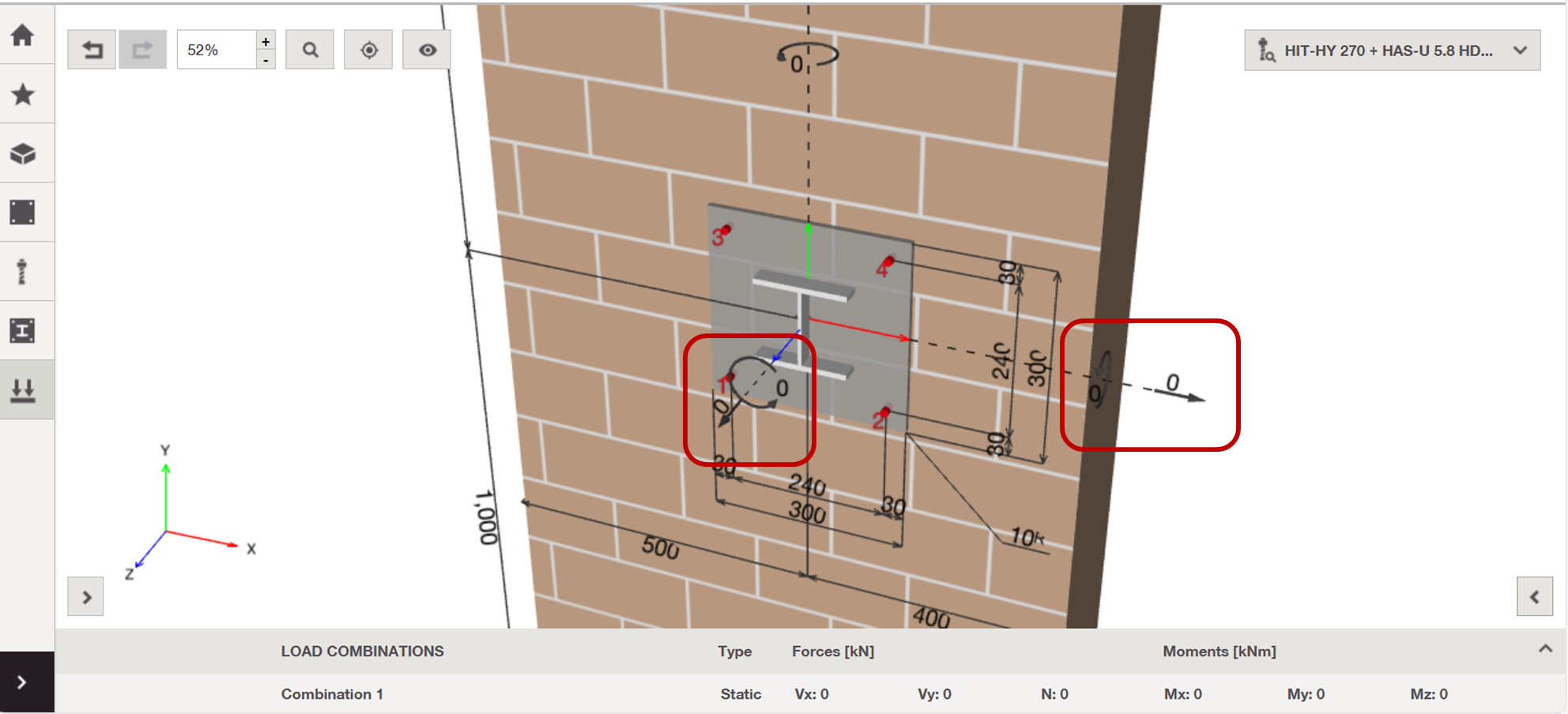

Click on the tension, shear, or moment load labels in the 3D view to enter load values. -
Select product

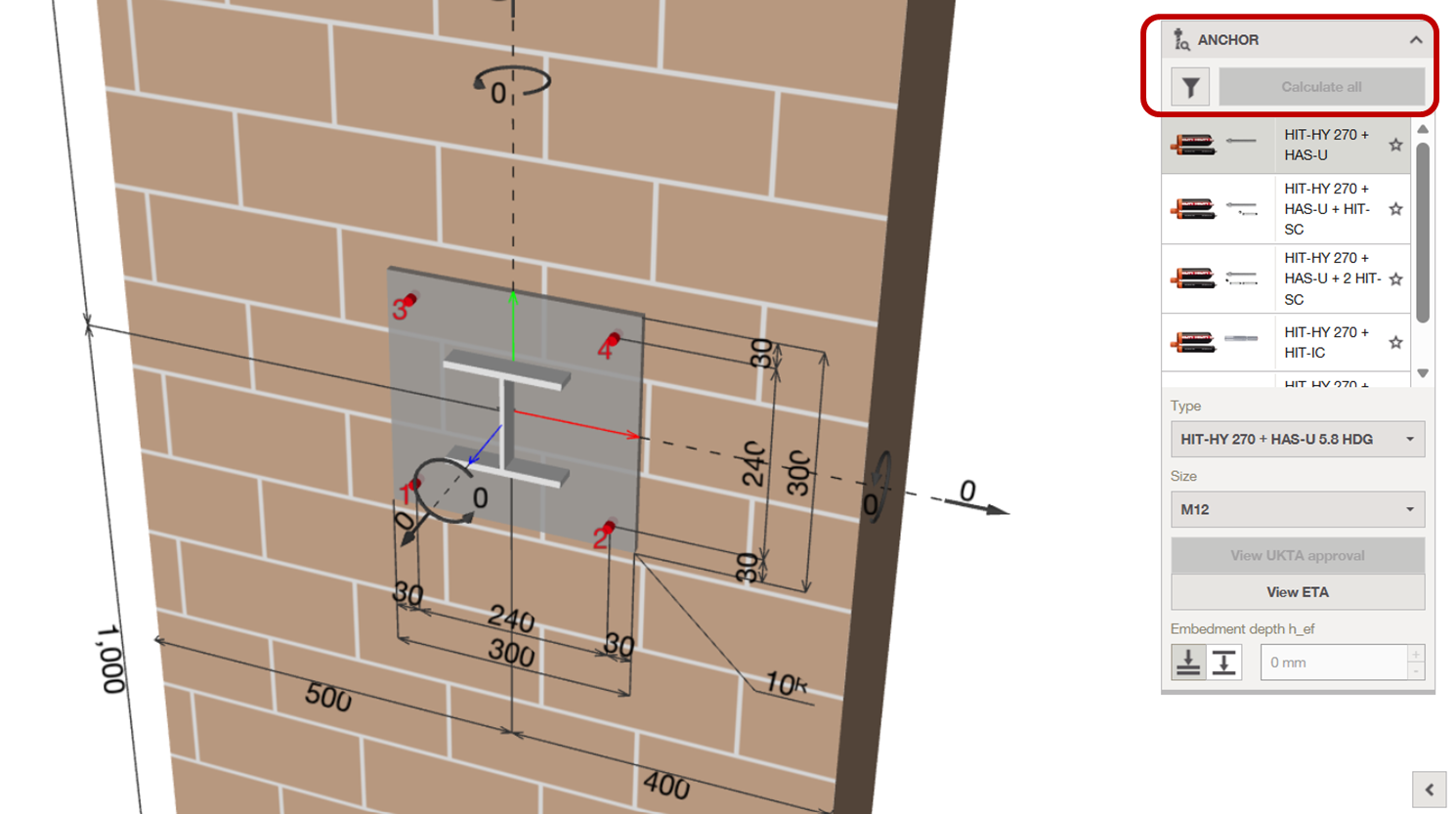

Click the product selector box in the top right corner of the 3D view to choose the product type, size, embedment depth, and to view product approval data. -
Modify the view
Rotate: Left‑click and drag anywhere in the 3D view.
Pan: Right‑click and drag to shift the model.
Tip
Use Show/hide elements in 3D to control what is displayed.
For better workspace visibility, use the Zoom in/out, Reset camera, and Collapse menu options.
For more details, refer to the article Navigating the landing page to familiarise yourself with all available controls.
