How to generate and modify specification text in Anchoring to Masonry module

0 0
Link copied!

Summary

Generating specification text allows PROFIS Engineering to create a formatted, project‑specific summary of anchor selection, materials and installation requirements. This specification text can be added directly to your project documentation to clearly communicate product details and design inputs to contractors, engineers, and reviewers.

Prerequisites

Make sure you:

  • Are logged in to your PROFIS Engineering account
  • Have opened the Anchoring to Masonry module

If needed, refer to the article How to access the Anchoring to Masonry module in PROFIS Engineering.

Step-by-step instructions

  1. Click the Specification text icon

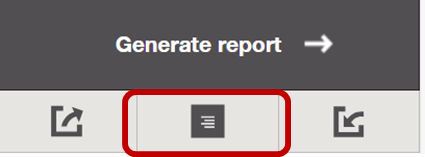

    In your Anchoring to Masonry design workspace, go to the panel on the right-hand side of the screen and click the Specification text icon.

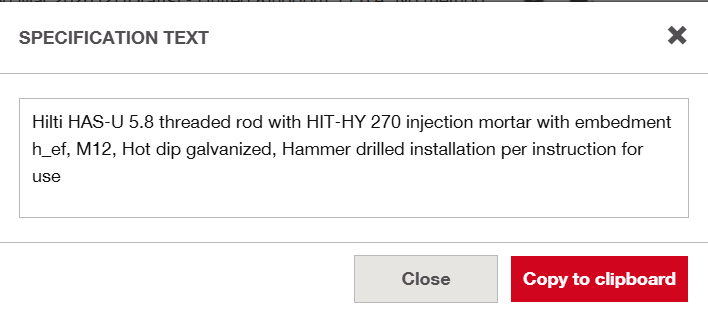

    Click Copy to clipboard to copy the specification text.


    Alternate option

  2. Click the Export icon

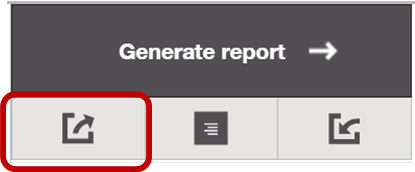

    In your Anchoring to Masonry design workspace, go to the panel on the right-hand side of the screen and click the Export icon.

  1. Select Specification Text
    From the available export options, choose Specification Text.

  2. Copy the Specification Text
    In the pop‑up window, click Copy to clipboard to copy the generated specification text.

    Modify Specification Text (optional)

  3. Open the report generator

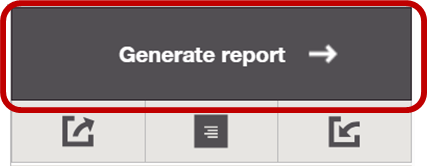

    Click Generate report on the right-hand side of the screen.

  1. Edit the specification text

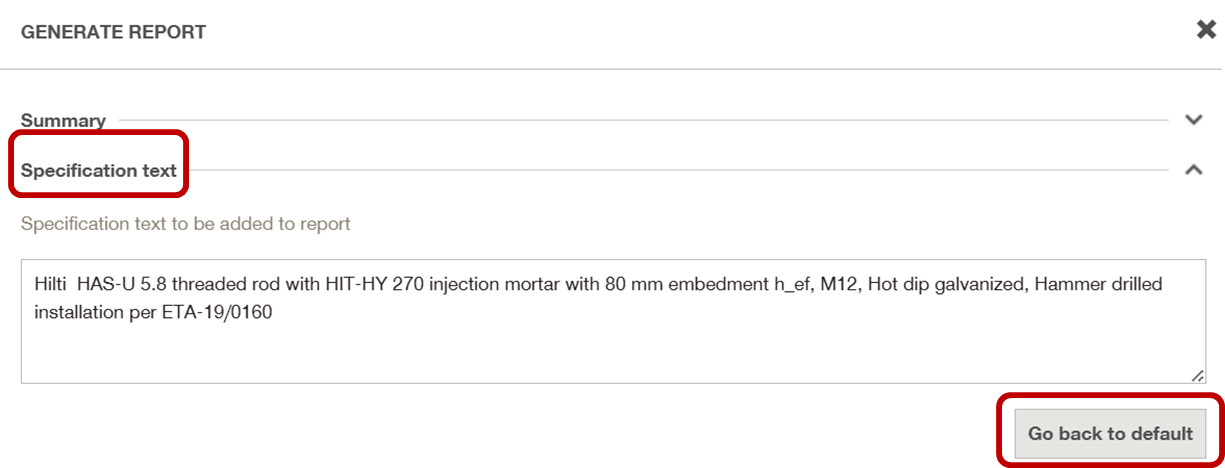

    In the pop‑up window, update the Specification text as needed.
    Select Go back to default to restore the original version at any time.

  2. Save and generate the report

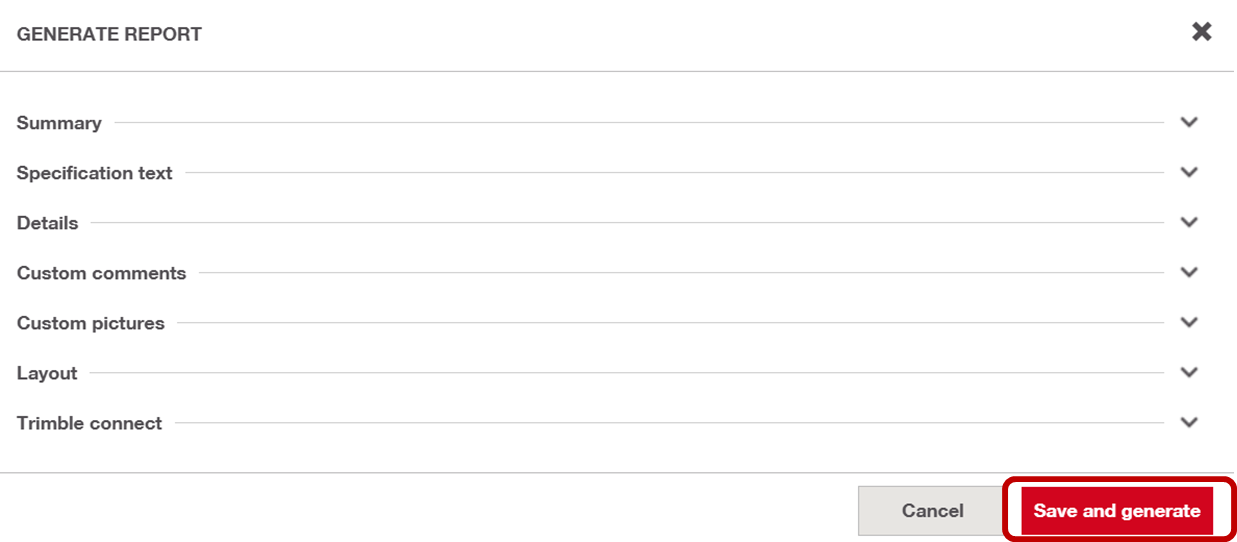

    Click Save and generate to create a detailed design report that includes your modified specification text.

Tip

Consider including installation aids, tools, and specific execution guidance in your specification text. Clear instructions help ensure proper on‑site installation and alignment with your design intent.
