Summary
Defining the installation conditions ensures that PROFIS Engineering applies the correct drilling method, hole condition, drilling aid, and recess depth, so that post-installed element performance reflects realistic installation practices used on site. These inputs tell the software how the hole is made and what condition it’s in, so it can use the correct capacities from approvals and test data.
Prerequisites
Make sure you:
- Are logged in to your PROFIS Engineering account
- Have opened the Shear strengthening module
If needed, refer to the article How to access the Shear strengthening module in PROFIS Engineering.
Step-by-step instructions
-
Open the Installation conditions tab

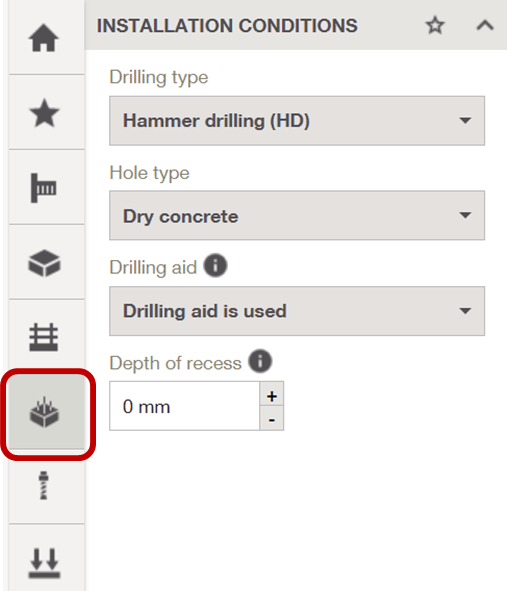

In your Shear strengthening design workspace, navigate to the Installation conditions tab on the left-hand side of the screen.
You will see four main inputs:- Drilling type
- Hole type
- Drilling aid
-
Depth of recess
-
Select the drilling type

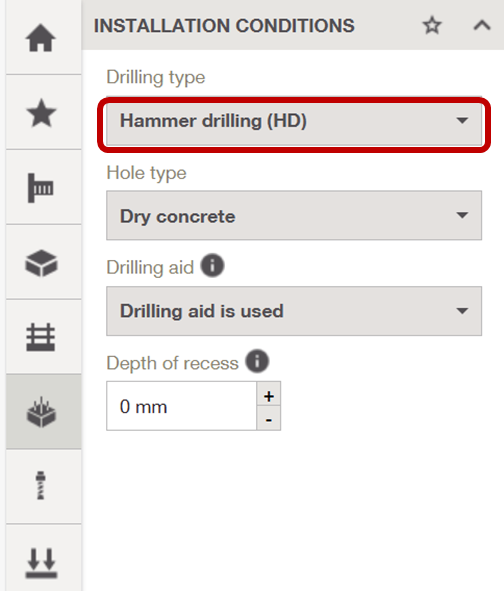

Open the Drilling type dropdown and choose the drilling method to be used on site.Note: Drilling type refers to the method used to create the hole in the concrete. This influences the surface roughness and geometry of the hole, which in turn can affect performance of the fastening element, thereby may impact the design strength.
-
Select the hole type

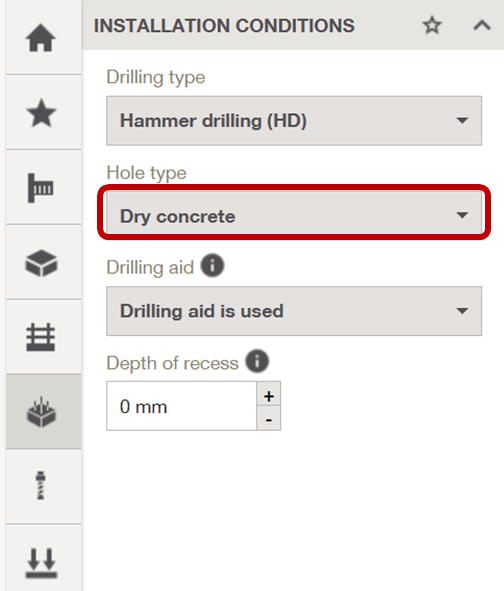

Open the Hole type dropdown and choose the condition of the hole expected at time of installation.
Note: Moisture conditions can influence bond strength and adhesive behaviour. -
Define whether a drilling aid is used

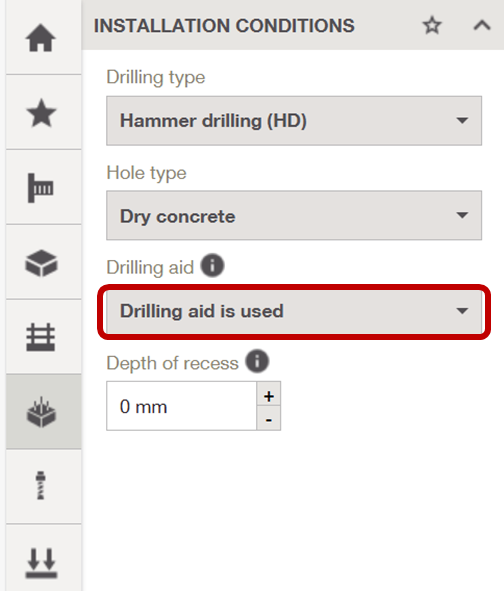

Open the Drilling aid dropdown and select one of the following:- Drilling aid is used
-
No drilling aid
-
Define the depth of the recess (optional)

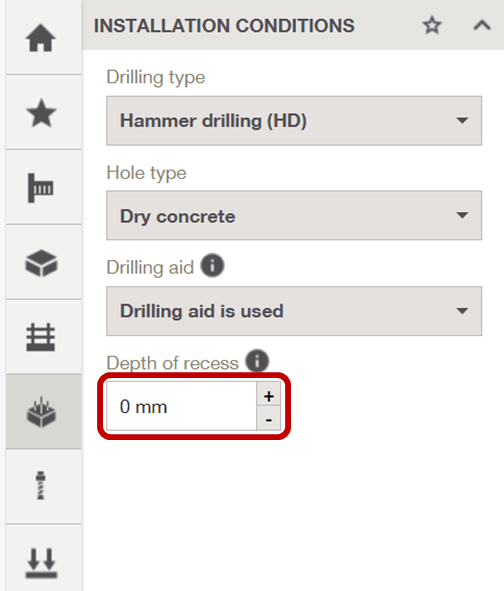

Enter the Depth of recess using the input field.
Tip
Use the information (i) buttons next to Drilling aid and Depth of recess for detailed explanations and example illustrations. These descriptions help ensure your selected installation conditions match real jobsite practices and do not unintentionally reduce anchor performance.
