Summary
The 3D view allows you to adjust the visual orientation of your model, edit geometry directly, apply loads, and select products - all within an interactive 3D environment.
Prerequisites
Make sure you:
- Are logged in to your PROFIS Engineering account
- Have opened the Concrete-over-metal-deck module
If needed, refer to the article How to access the Concrete-over-metal-deck module in PROFIS Engineering.
Step-by-step instructions
-
Modify dimensions

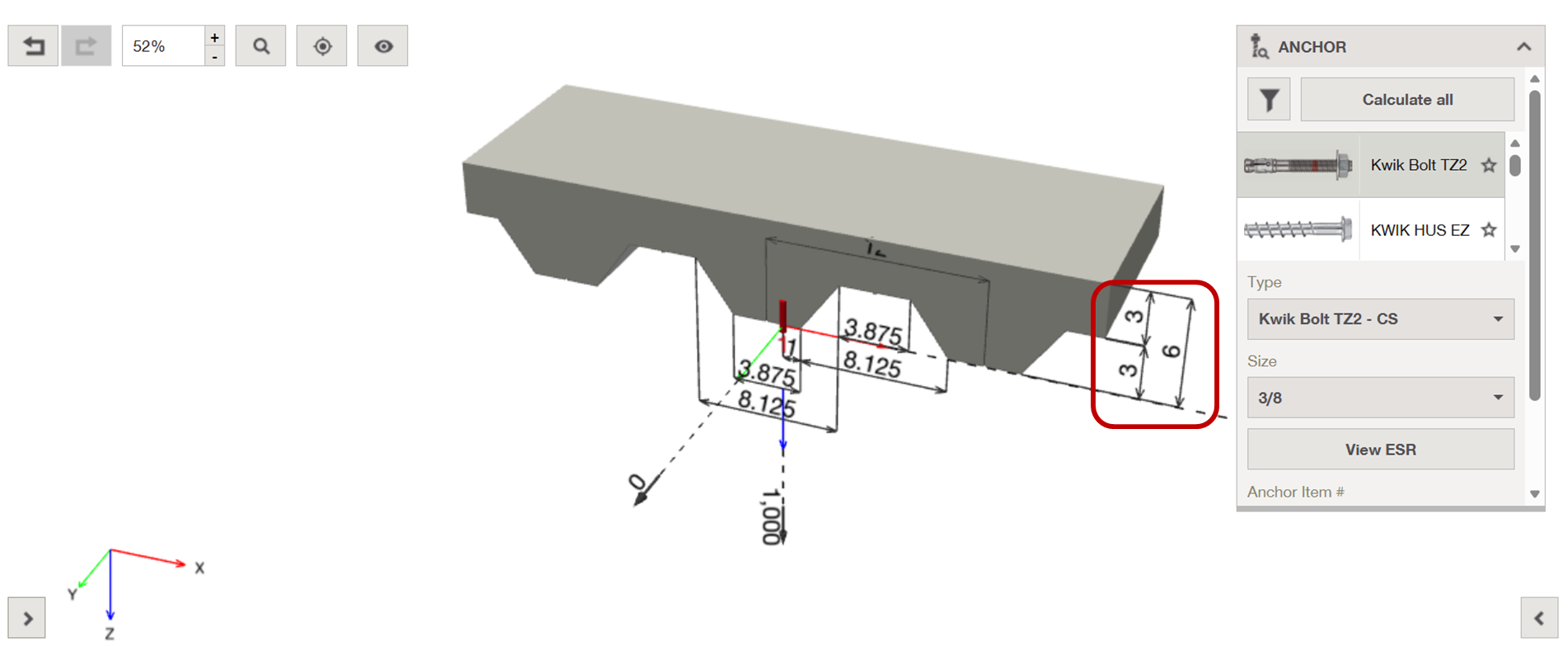

In the 3D view, click directly on any dimension label to edit. -
Input loads

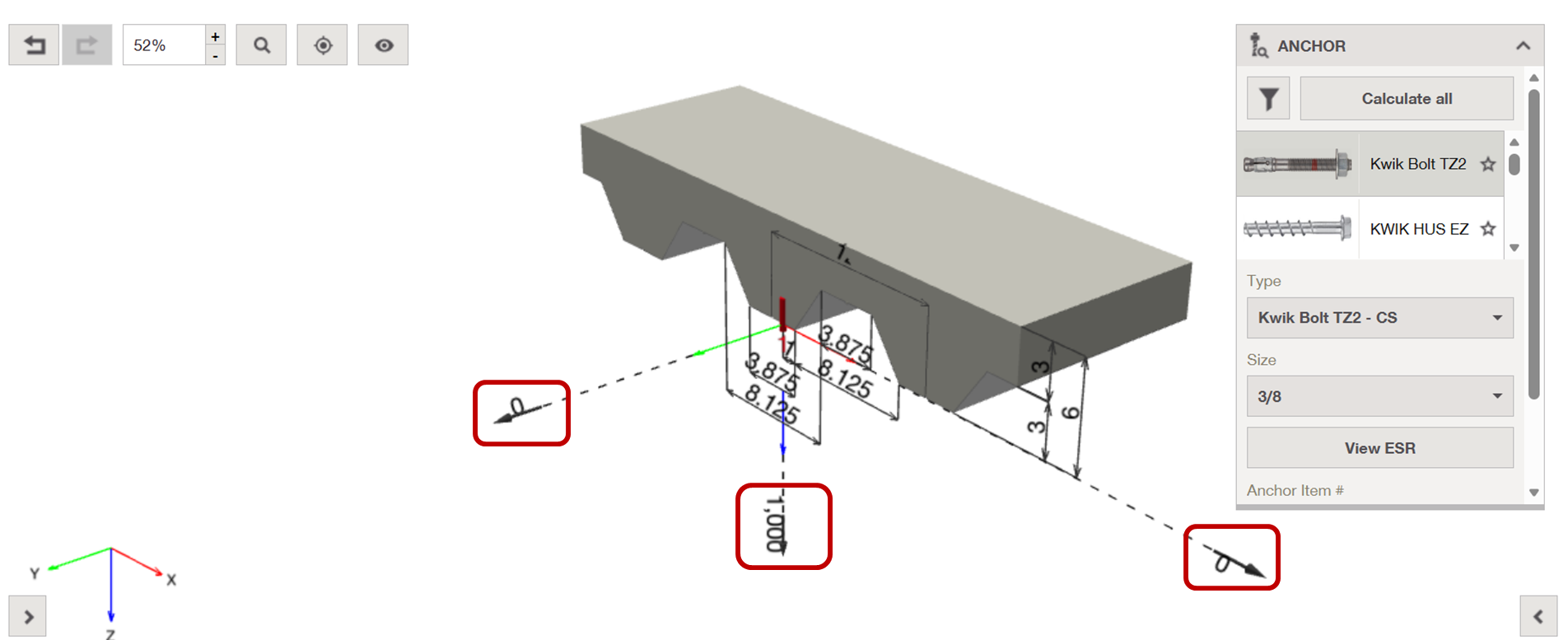

Click on the tension or shear load labels in the 3D view to enter load values.
-
Select product

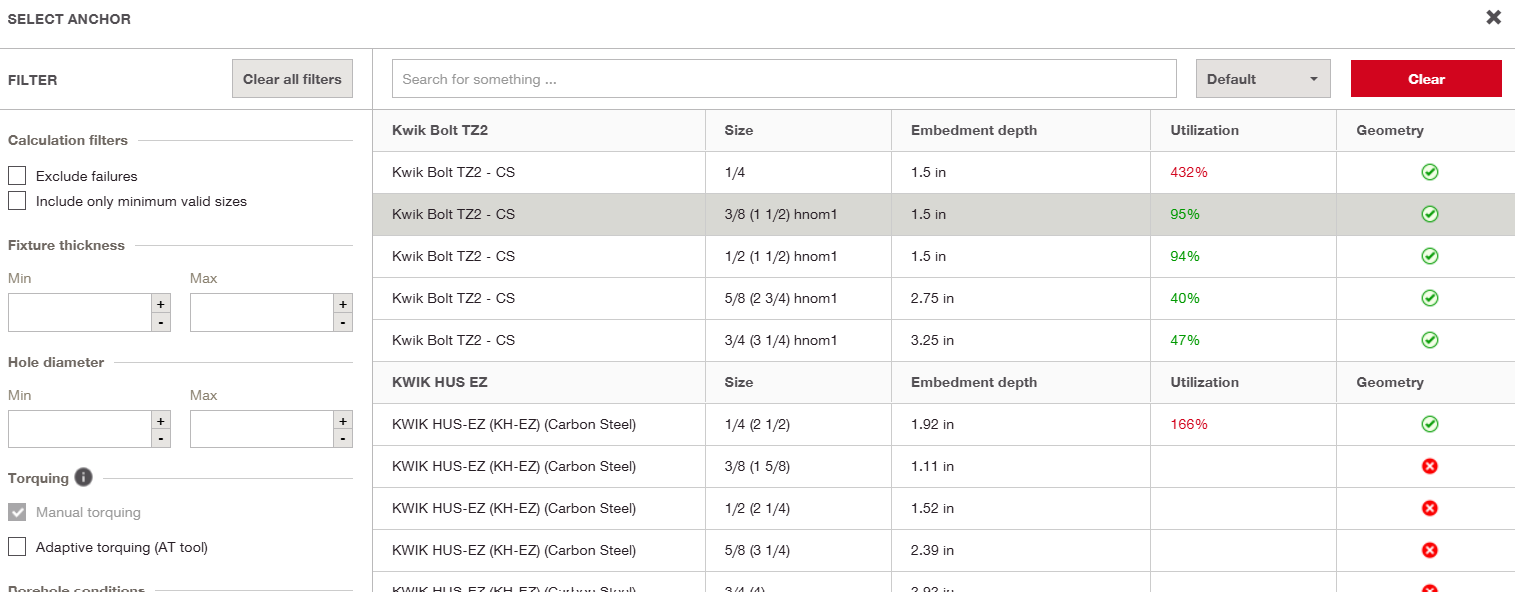

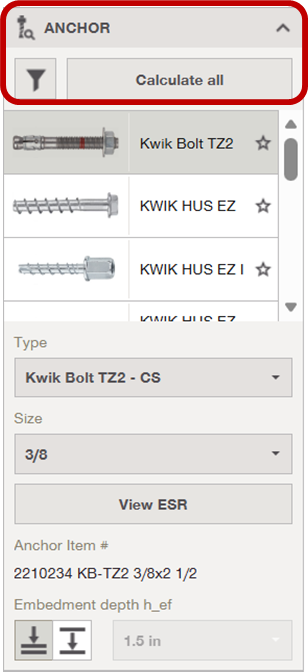

Click the product selector box in the top right corner of the 3D view to choose the product type, size, and to view product approval data.Click Calculate all to view utilization for all suitable anchors simultaneously and choose the most suitable option.
-
Modify the view
Rotate: Left‑click and drag anywhere in the 3D view.
Pan: Right‑click and drag to shift the model.
Note: 3D model rotation button is included in new concrete tab.
Tip
For better workspace visibility, use the Zoom in/out, Reset camera, and Collapse menu options.
For more details, refer to the article Navigating the landing page to familiarize yourself with all available controls.
