Summary
Modifying the anchor layout allows PROFIS Engineering to correctly represent the position and spacing of anchors on the metal deck.
Prerequisites
Make sure you:
- Are logged in to your PROFIS Engineering account
- Have opened the Concrete-over-metal-deck module
If needed, refer to the article How to access the Concrete-over-metal-deck module in PROFIS Engineering.
Step-by-step instructions
-

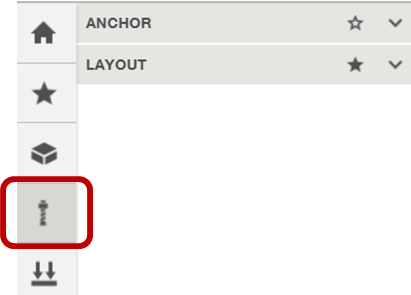

Open the Anchor tab
In your Concrete-over-metal-deck design workspace, navigate to the Anchor tab on the left-hand side of the screen. -

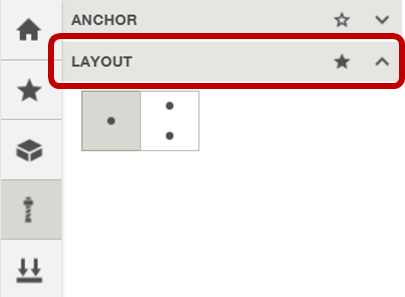

Open the Layout section
Expand the Layout section to view the available inputs. -

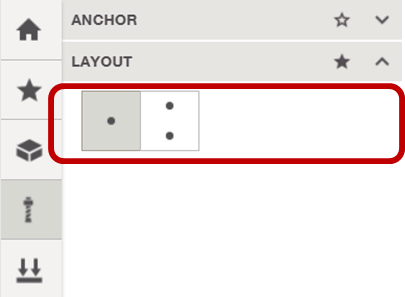

Select the anchor layout
Choose the desired anchor layout from the available options.
