Summary
Selecting the correct load type and design method ensures that PROFIS Engineering applies the appropriate assumptions for load behavior, design checks, and calculation models. These settings directly influence how loads are interpreted and how anchor forces, failure modes, and design capacities are evaluated.
Prerequisites
Make sure you:
- Are logged in to your PROFIS Engineering account
- Have opened the Concrete-over-metal-deck module
- Have entered all required design inputs
If needed, refer to the article How to access the Concrete-over-metal-deck module in PROFIS Engineering.
Step-by-step instructions
-
Go to Loads / Calculation Type

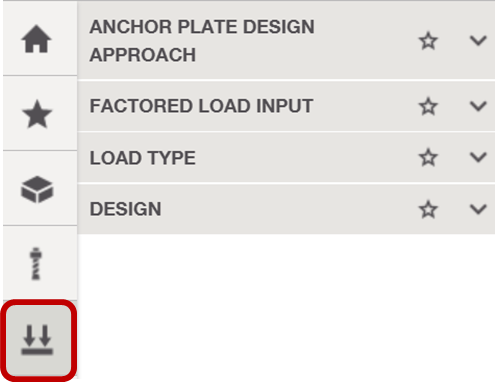

In your Concrete-over-metal-deck design workspace, go to the Loads / Calculation Type on the left-hand side of the screen. -
Select the Anchor plate design approach

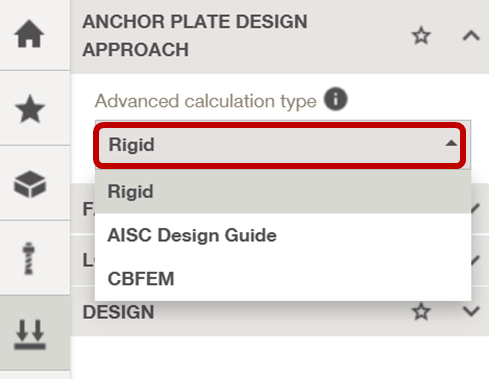

Under Anchor plate design approach, choose your preferred design approach from the dropdown menu. -
Select the Load type

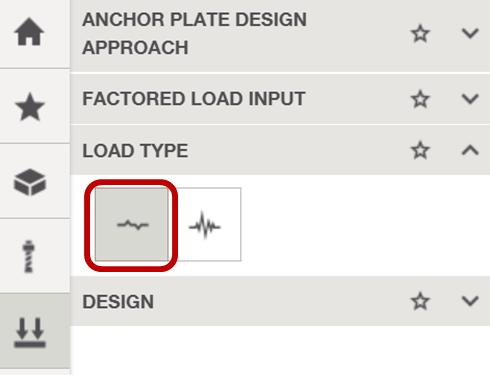

Go to Load type and select the desired option.
The Static load option is enabled by default. -
Define Seismic load type (if applicable)

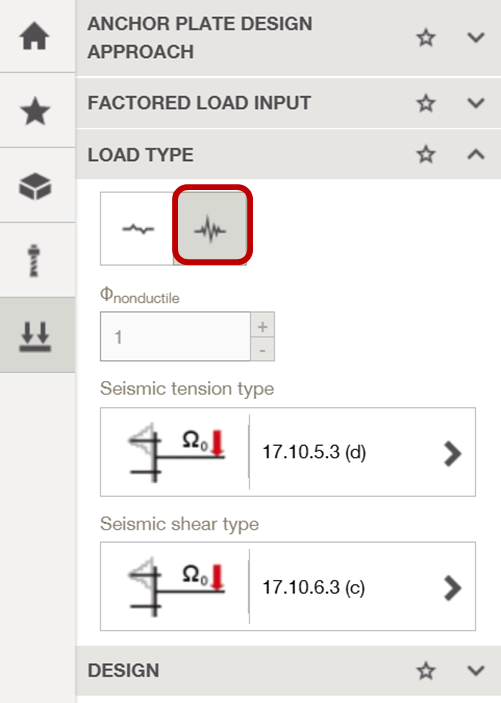

Go to Load type and select the seismic load option.
Select the seismic tension type from available options.
Select the seismic shear type from available options.
Note: Additional information may be requested depending on your selection. -
Select the design method

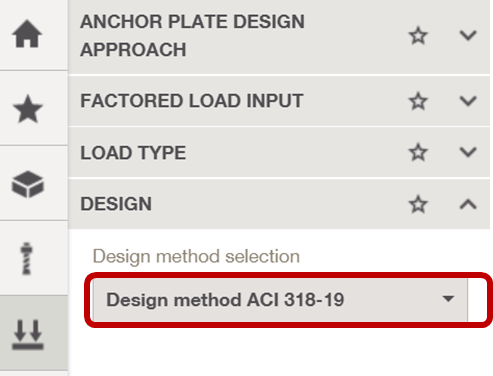

Go to Design and select the desired option from the dropdown menu.
Tip
Click the information (i) button located near the feature you are considering for detailed guidance. For example information (i) on the Advanced calculation type.
