Summary
The 3D view allows you to adjust the visual orientation of your model and edit geometry directly - all within an interactive 3D environment.
Prerequisites
Make sure you:
- Are logged in to your PROFIS Engineering account
- Have opened the Shear strengthening module
- Have enabled the 3D editor
If needed, refer to the article How to access the Shear strengthening module in PROFIS Engineering.
Step-by-step instructions
-
Modify dimensions

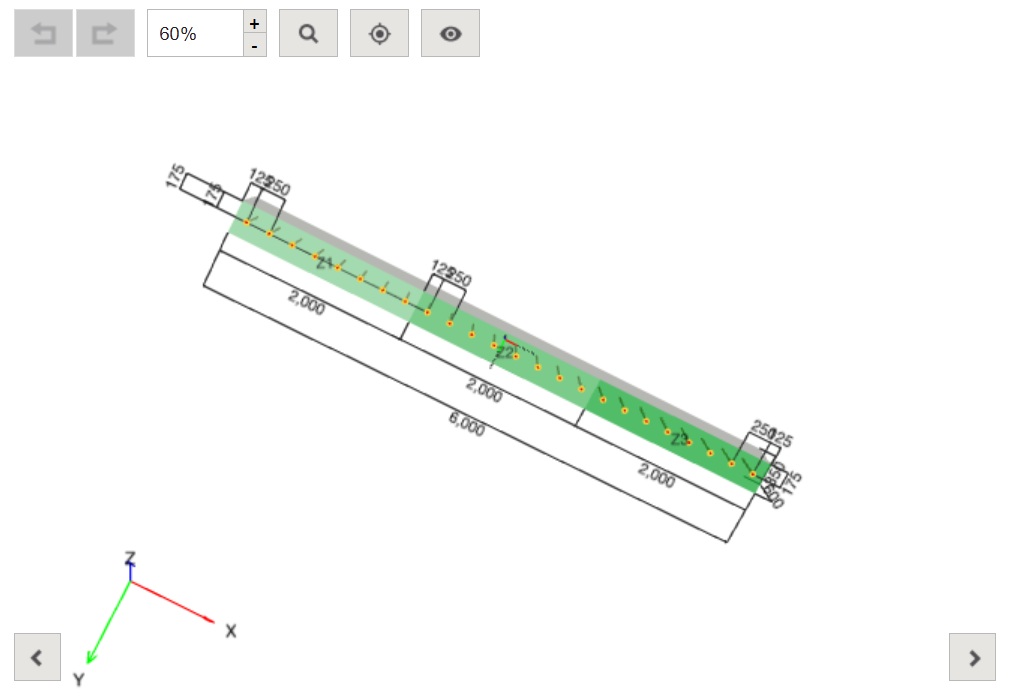

In the 3D view, click directly on any dimension label to edit. -
Modify the view
Rotate: Left‑click and drag anywhere in the 3D view.
Pan: Right‑click and drag to shift the model.
Tip
Use Show/hide elements in 3D to control what is displayed.
For better workspace visibility, use the Zoom in/out, Reset camera, and Collapse menu options.
For more details, refer to the article Navigating the landing page for shear strengthening module to familiarise yourself with all available controls.
