How to view results in Shear strengthening module

0 0
Link copied!

Summary

The quick results view provides a detailed breakdown of governing failure modes and utilisation ratios, helping you validate your design and determine whether any adjustments are required.

Prerequisites

Make sure you:

  • Are logged in to your PROFIS Engineering account
  • Have opened the Shear strengthening module

If needed, refer to the article How to access the Shear strengthening module in PROFIS Engineering.

Step-by-step instructions

  1. Go to the Results and Notifications panel

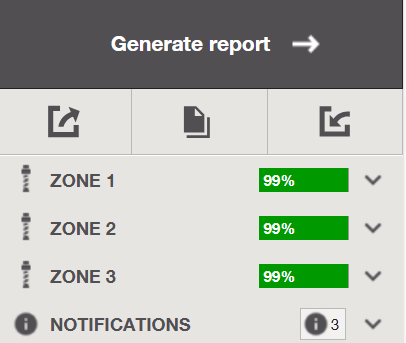

    In your Shear strengthening design workspace, open the Results and Notifications panel on the right-hand side of the screen.

  2. Review design results

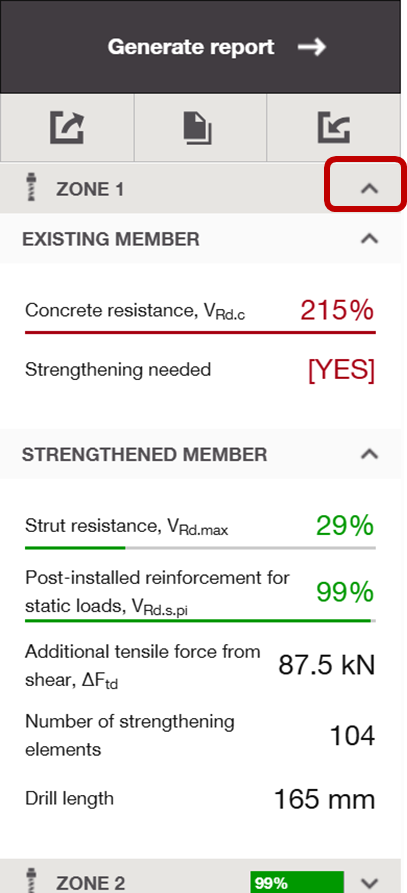

    Expand the Zone section(s) to view the overall design results.

  3. View Notifications

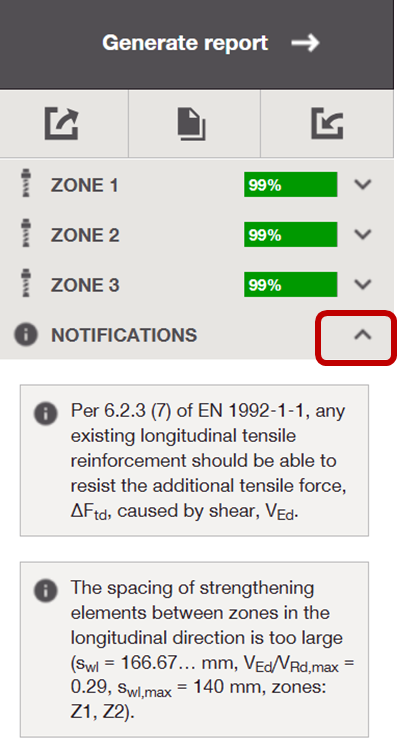

    Open the Notifications section to review design tips, warnings, and error messages.

  4. Save and generate detailed design report

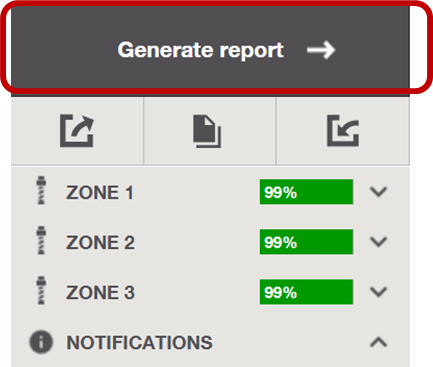

    Click Generate report on the right-hand side of the screen.

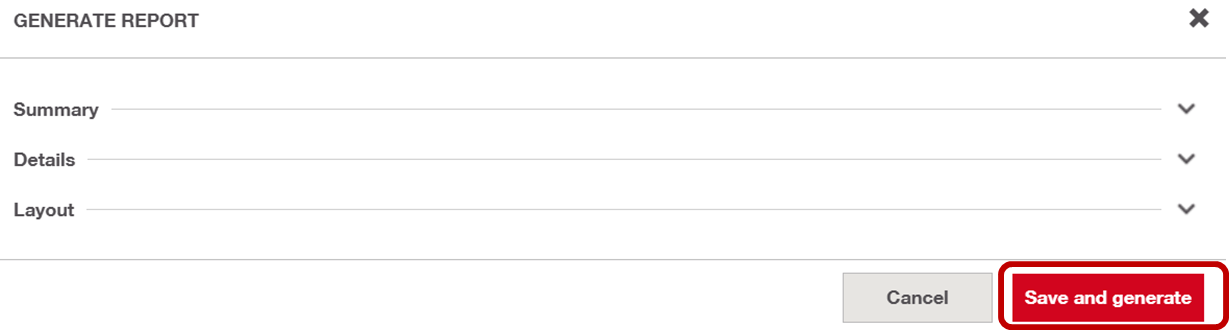

    In the pop‑up window, select Save and generate to create a full detailed design report.

Tip

When evaluating results, it is essential to first examine the strengthening need. Modify no. of zones, fastening element size, layout and so on to optimise your design.
