Summary
Selecting the correct application in the Concrete Overlay module ensures that PROFIS Engineering activates the appropriate design inputs, parameters, and checks specific to the chosen strengthening scenario. This article guides you on how to select the application in Concrete overlay module.
Prerequisites
Make sure you have:
- A valid Hilti account
- Access to PROFIS Engineering
- A stable internet connection
Step-by-step instructions
-
Go to the PROFIS Engineering website
https://profisengineering.hilti.com/ -
Log in to your account
Enter your Hilti credentials to access your workspace. -
Open the Concrete overlay module

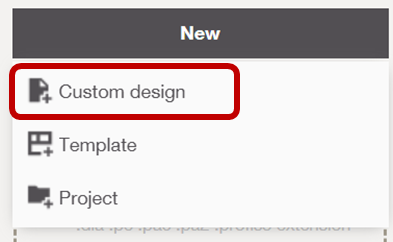

Click New in the top-left corner.
From the available options, select Custom design.
-

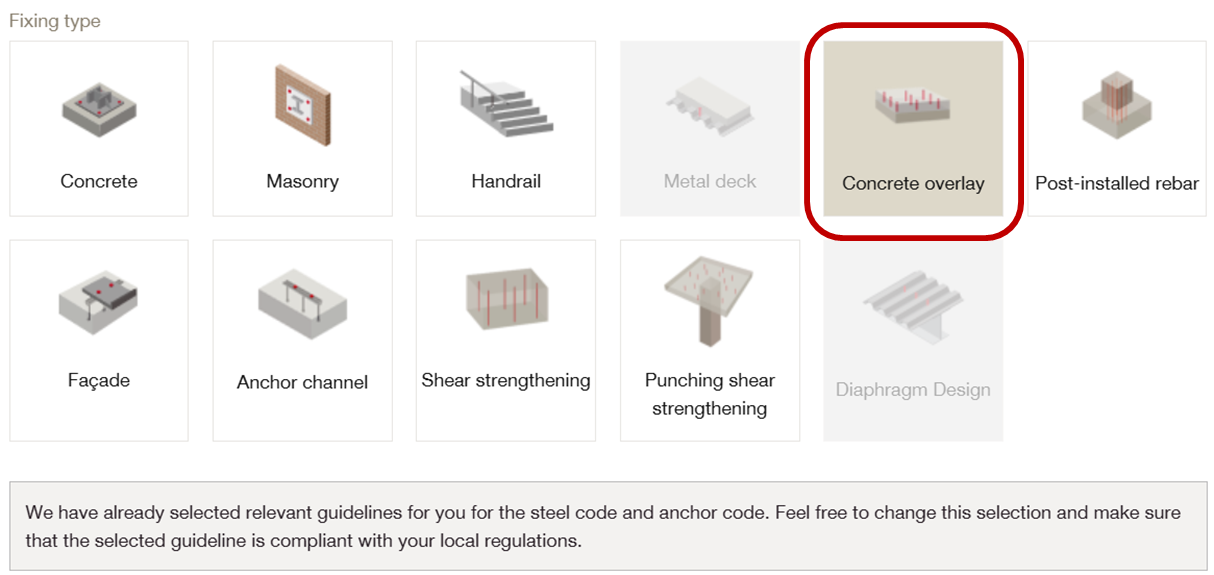

Select the fixing type
Choose Concrete overlay from the fixing type options -

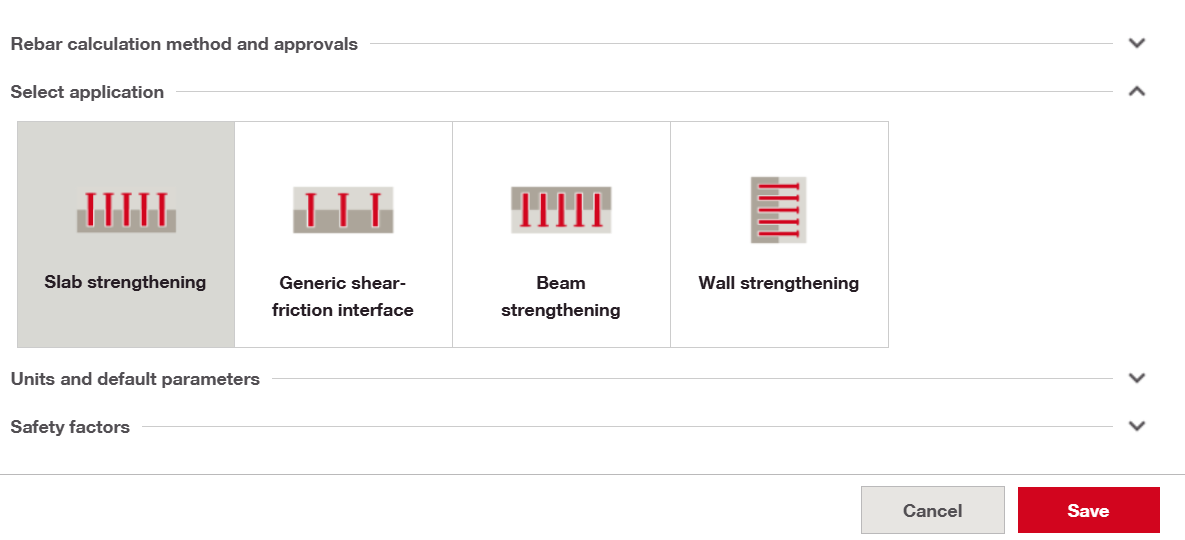

Select the application
Choose the desired application and click Save. -
Start a new design
After selecting the fixing type and application, your Concrete overlay design workspace will load automatically.
Alternative method

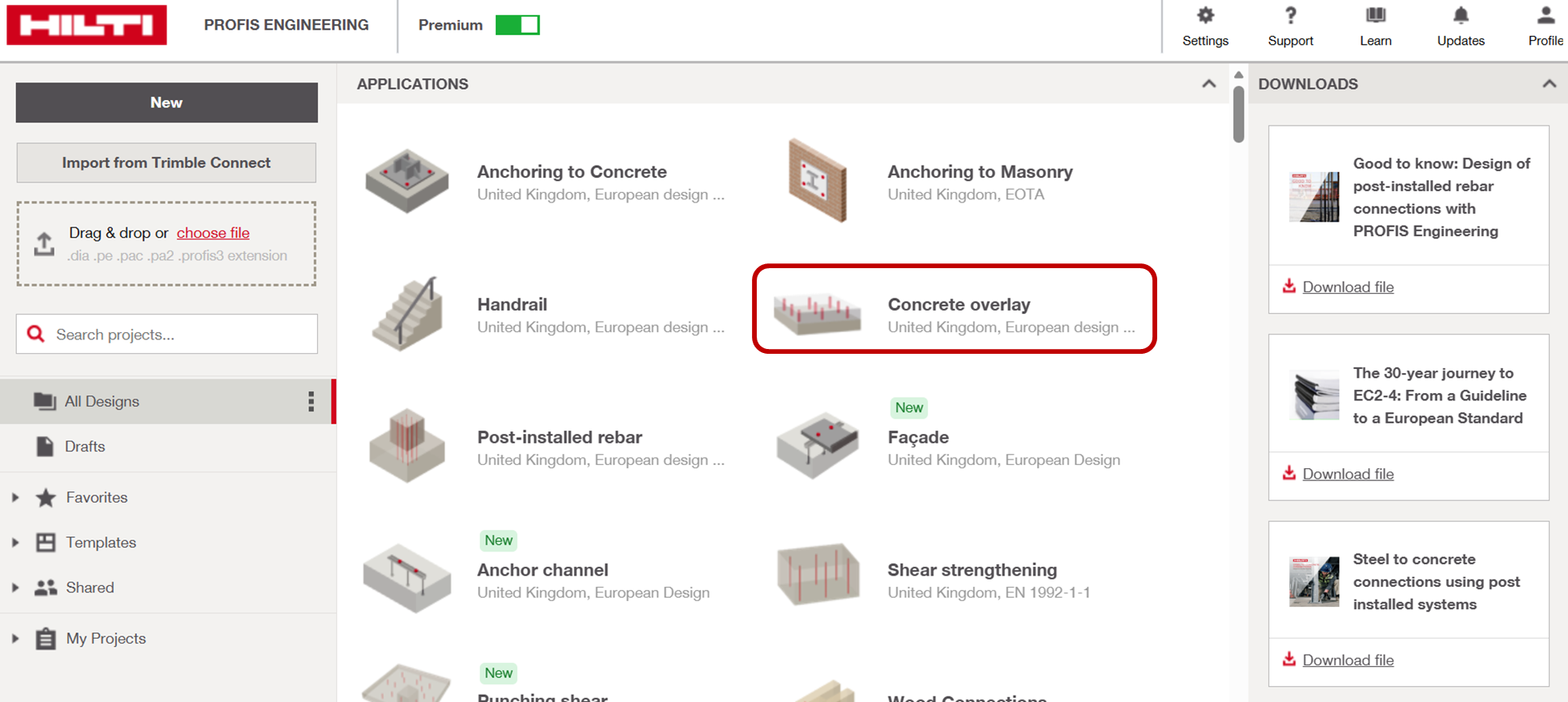

On the PROFIS Engineering home page, you can also click the Concrete overlay tile directly under the Applications section in the center panel.

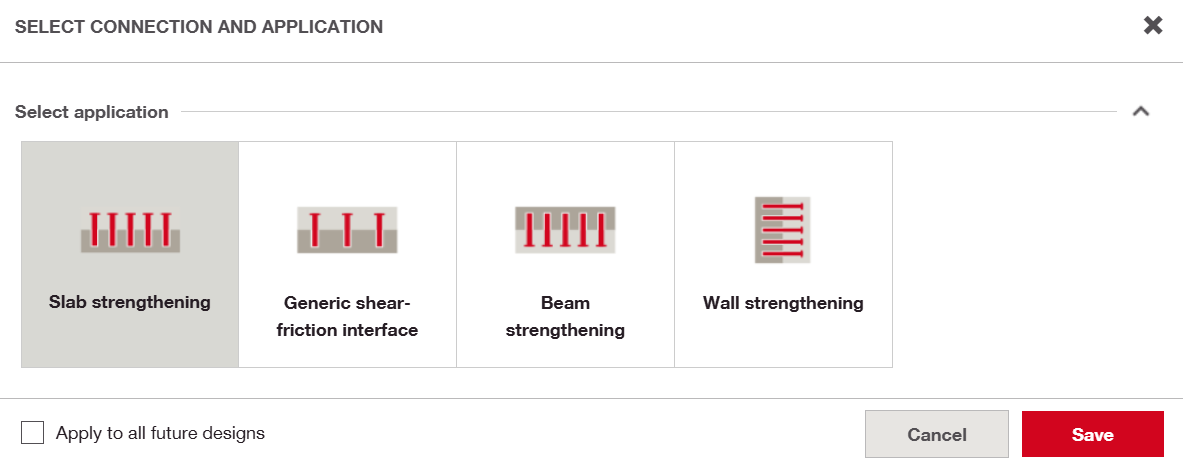

Choose the desired application in the pop-up window on select connection and application.
Click Save.
