How to use the 3D Editor in Concrete overlay module

0 0
Link copied!

Summary

The 3D view allows you to adjust the visual orientation of your model, edit geometry directly, view zone analysis, and select products - all within an interactive 3D environment.

Prerequisites

Make sure you:

  • Are logged in to your PROFIS Engineering account
  • Have opened the Concrete overlay module
  • Have enabled the 3D editor

If needed, refer to the article How to access the Concrete overlay module in PROFIS Engineering.

Step-by-step instructions

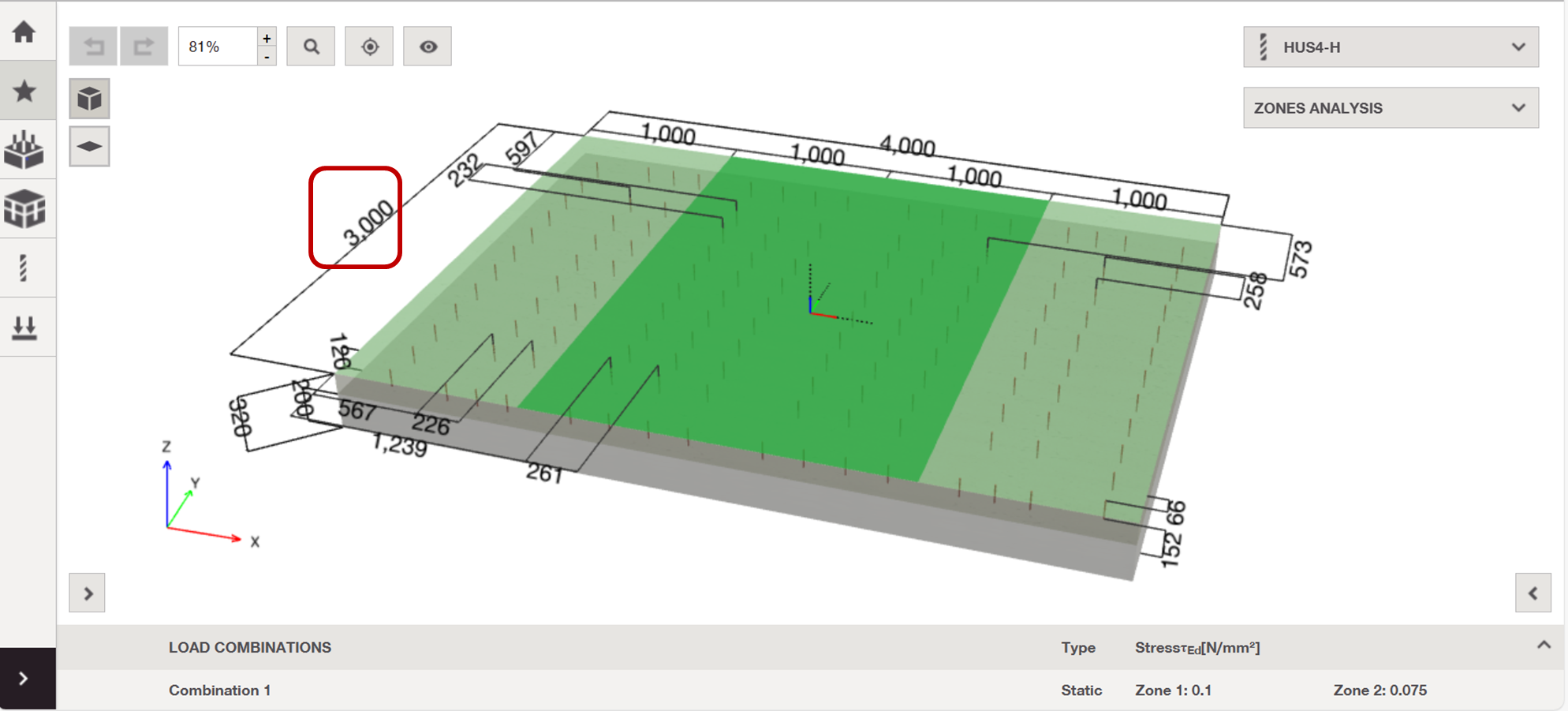

  1. Modify dimensions
    In the 3D view, click directly on any dimension label to edit.

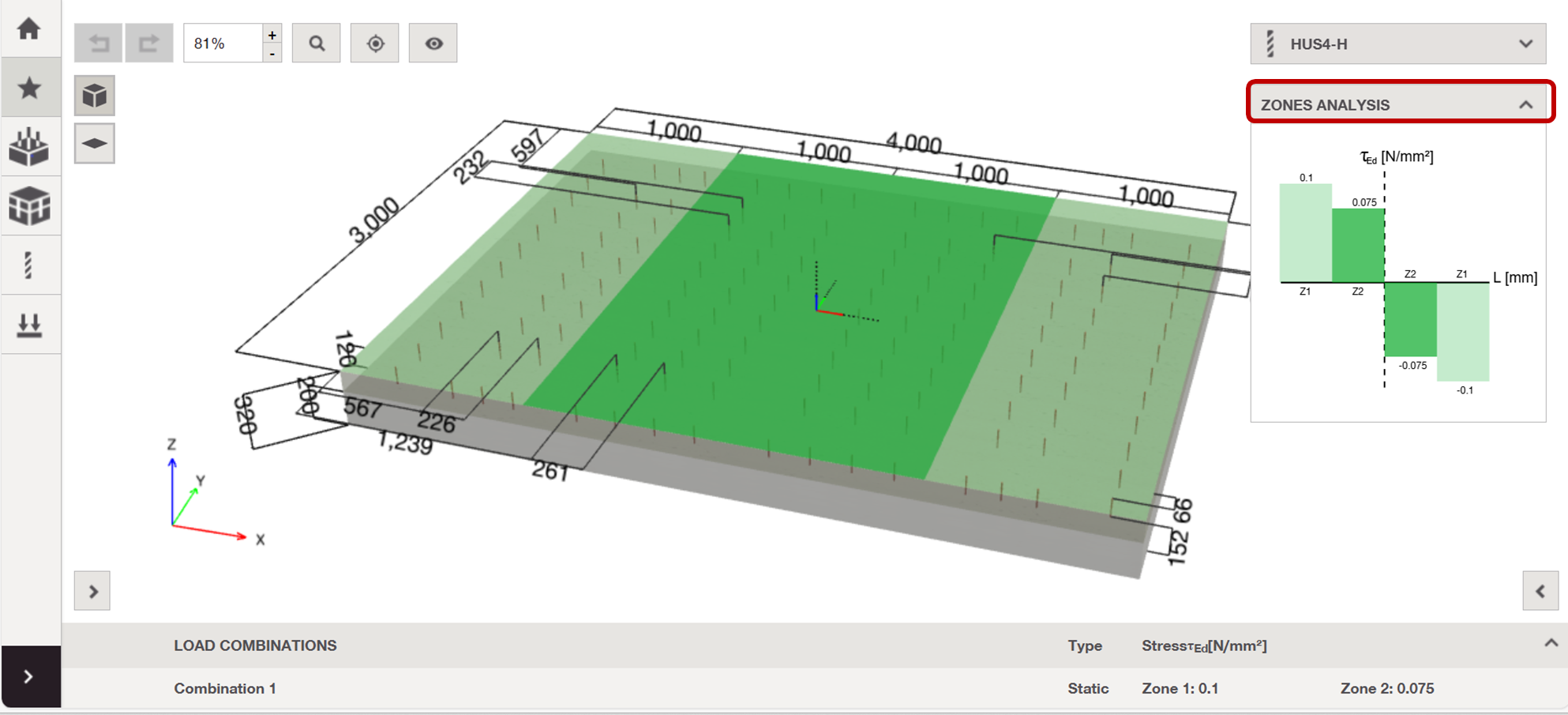

  2. View Zone analysis
    Click on the arrow to expand and view zone analysis.

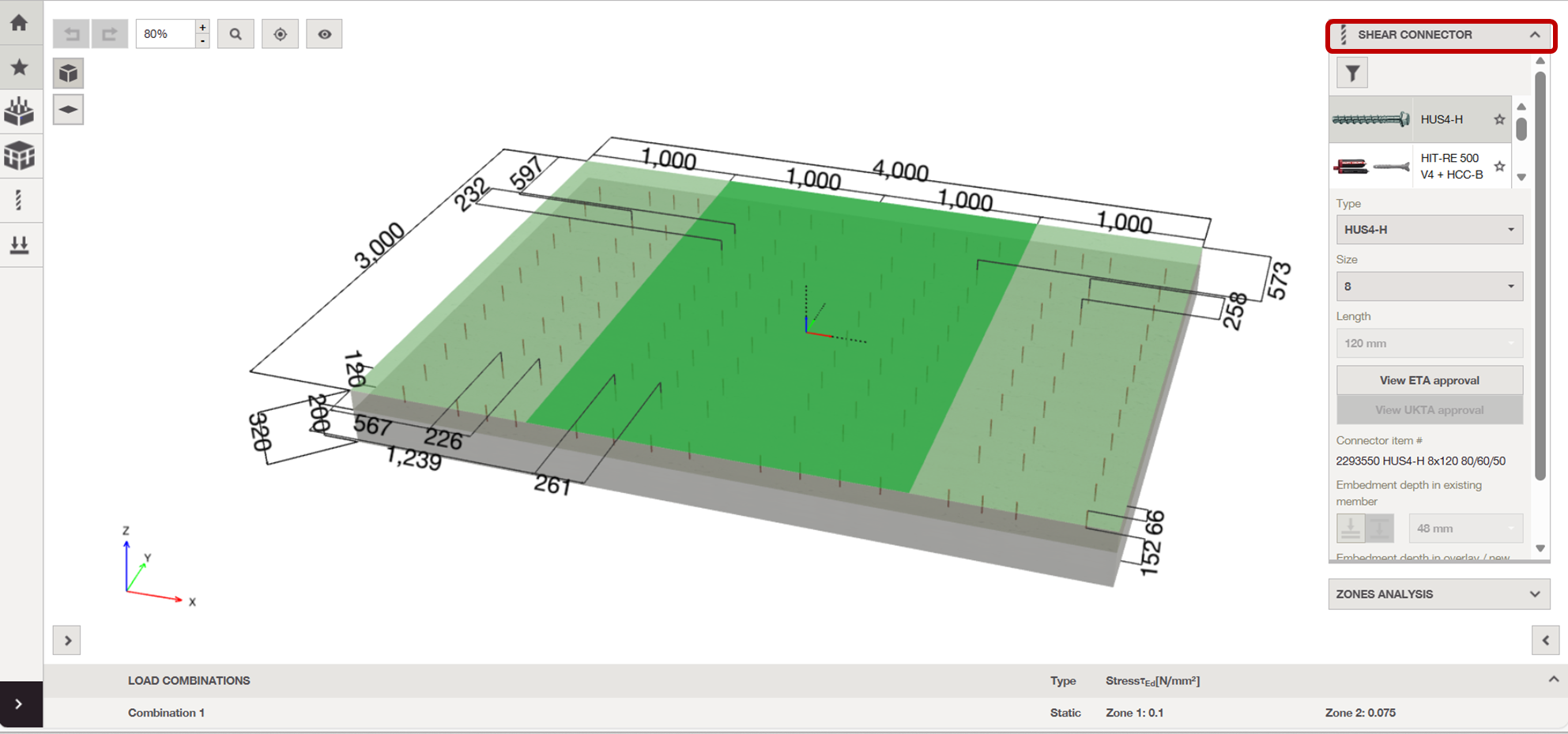

  3. Select product
    Click the Shear connector box in the top right corner of the 3D view to choose the product type, size, view length, and to view product approval data.

  4. Modify the view
    Rotate: Left‑click and drag anywhere in the 3D view.
    Pan: Right‑click and drag to shift the model.

Tip

Use Show/hide elements in 3D to control what is displayed.
For better workspace visibility, use the Zoom in/out, Reset camera, and Collapse menu options.

For more details, refer to the article Navigating the landing page to familiarise yourself with all available controls.
