Summary
The load combination panel allows you to create, edit, import, or delete load combinations so that PROFIS Engineering can evaluate anchor performance under all required loading scenarios. Managing load combinations ensures that your design reflects the actual loading conditions of the project and helps you quickly identify the governing combination for accurate and efficient anchor design.
Prerequisites
Make sure you are logged in to your PROFIS Engineering account and have opened the Anchoring to Concrete module. If you need help accessing the module, click here for step‑by‑step instructions.
Step-by-step instructions
-
Go to the load combination panel

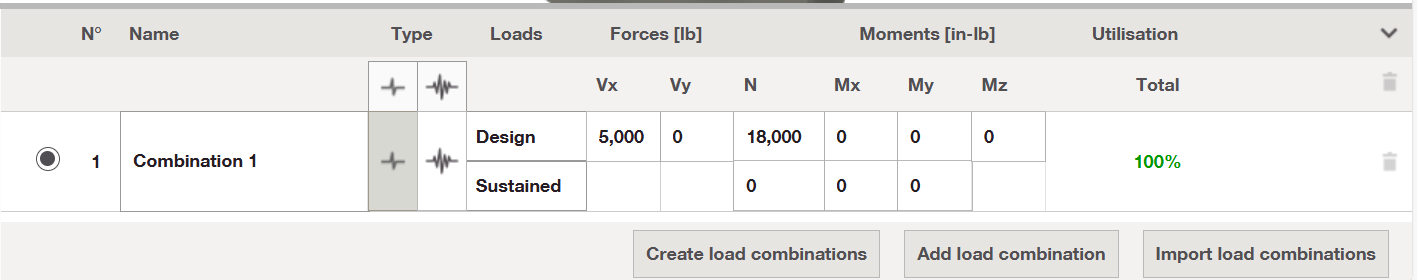

In your Anchoring to Concrete design workspace, navigate to the Load Combination panel located at the bottom of the screen. -
Input loads
Enter your required loads directly in the panel.
You can also edit the loads using the 3D view of the design. -
Create load combinations automatically

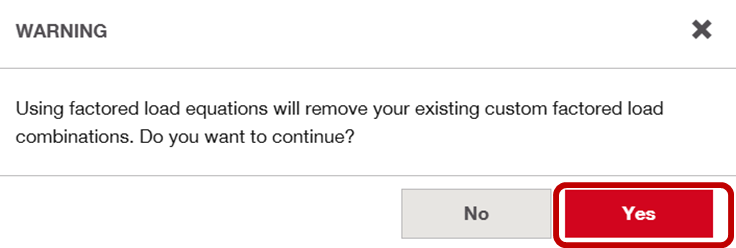

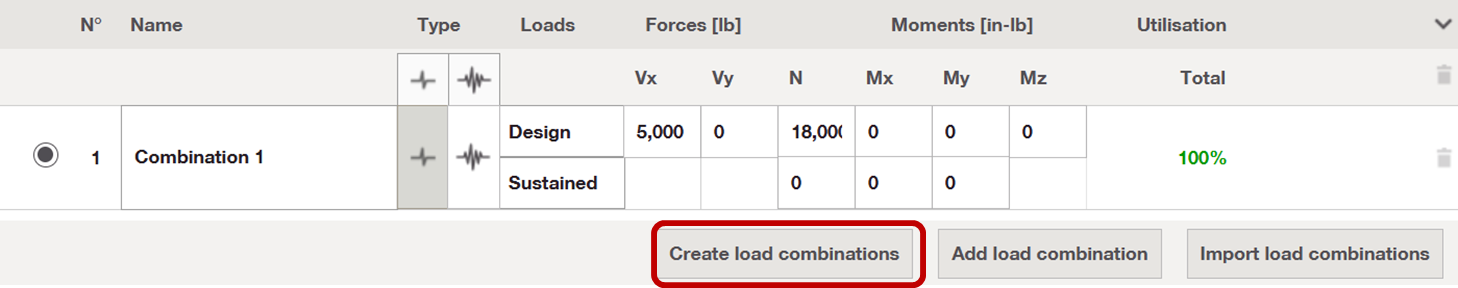

Select Create load combinations.In the pop‑up, click Yes to proceed.

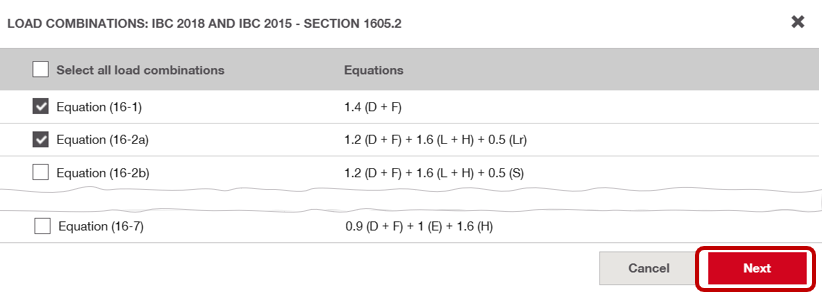

Choose the desired load combinations and click Next.

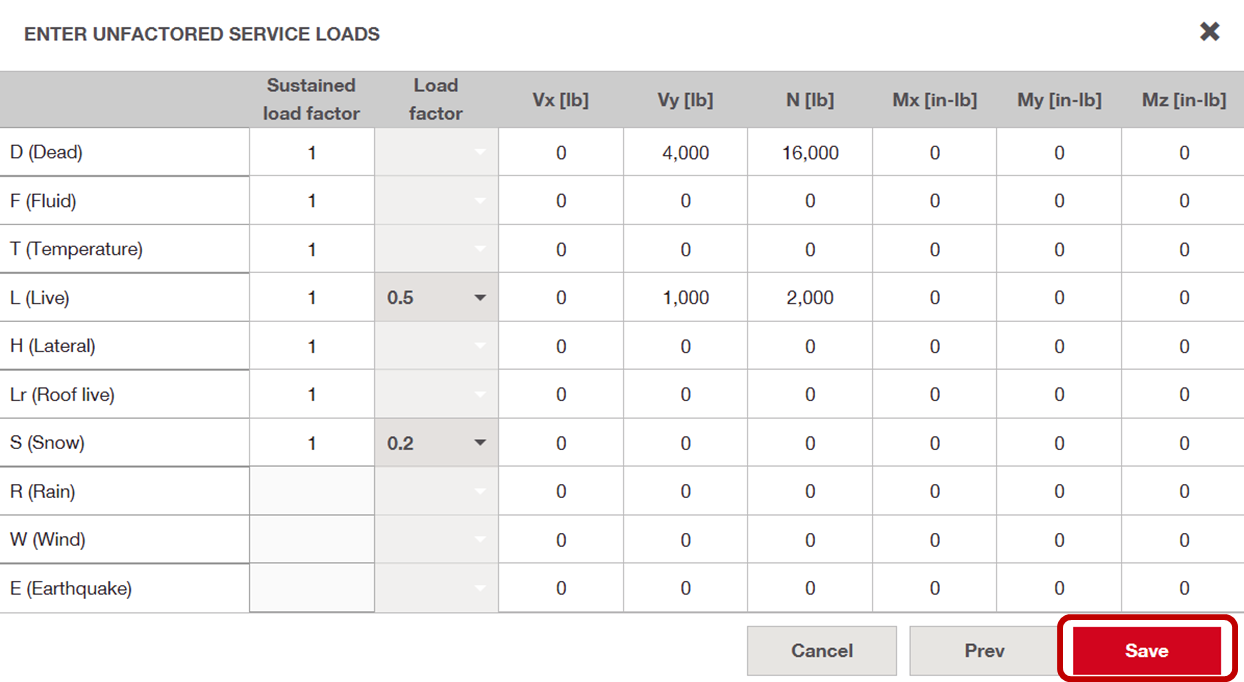

Enter the unfactored service loads and select Save.

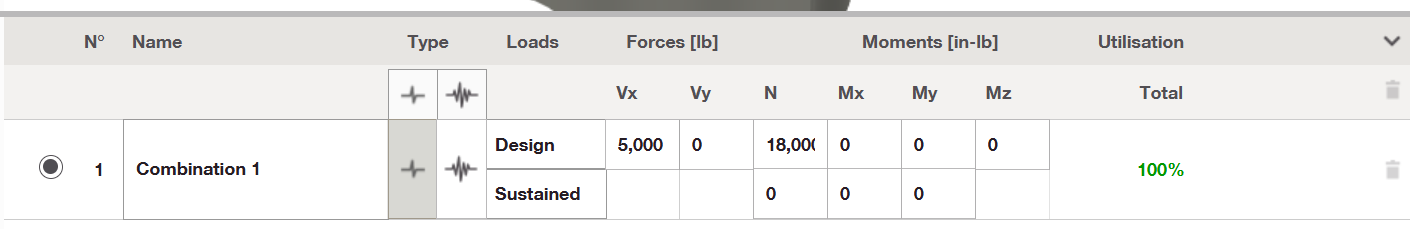

The Load Combination panel will update automatically.
By default, Calculate all combinations is enabled.
-
Switch to governing combination

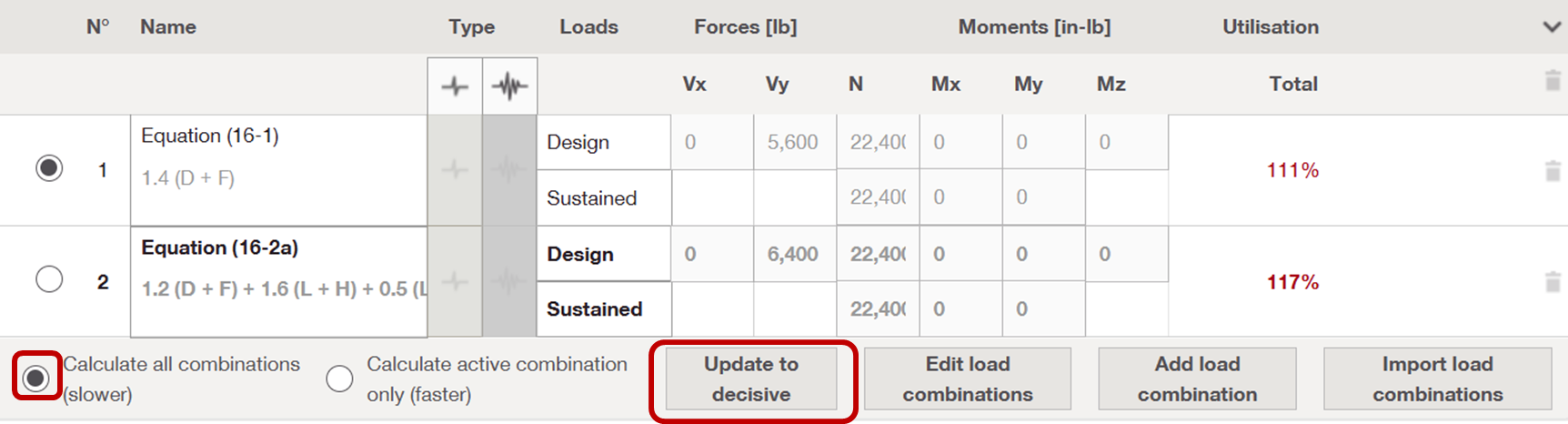

Select Update to decisive to switch to calculating only the governing load combination.Select Calculate active load combinations for faster results.

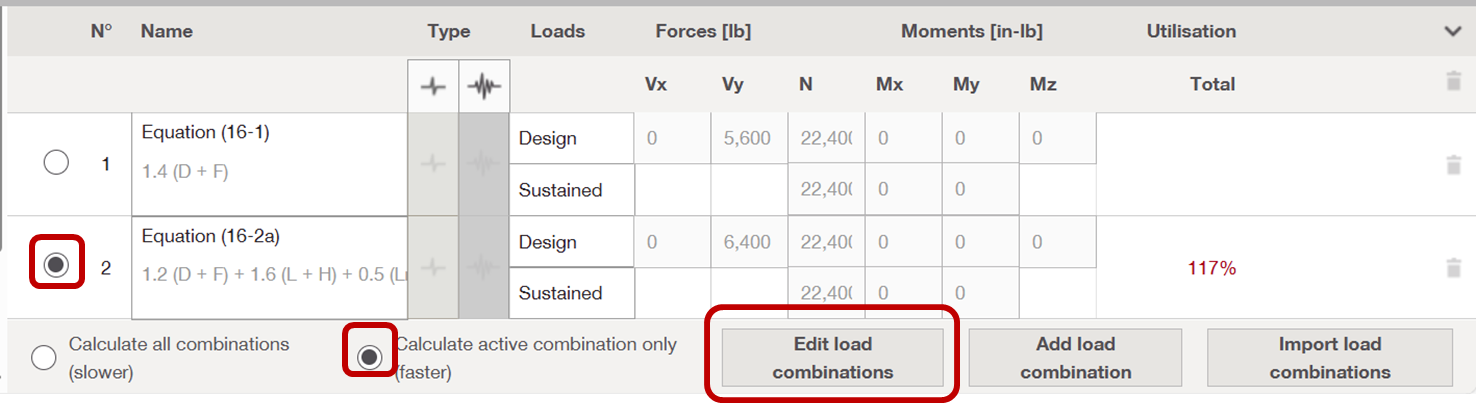

Click Edit load combinations to modify any existing values. -
Add load combinations
Select Add load combinations to create a new combination from scratch.
Enter the load details.

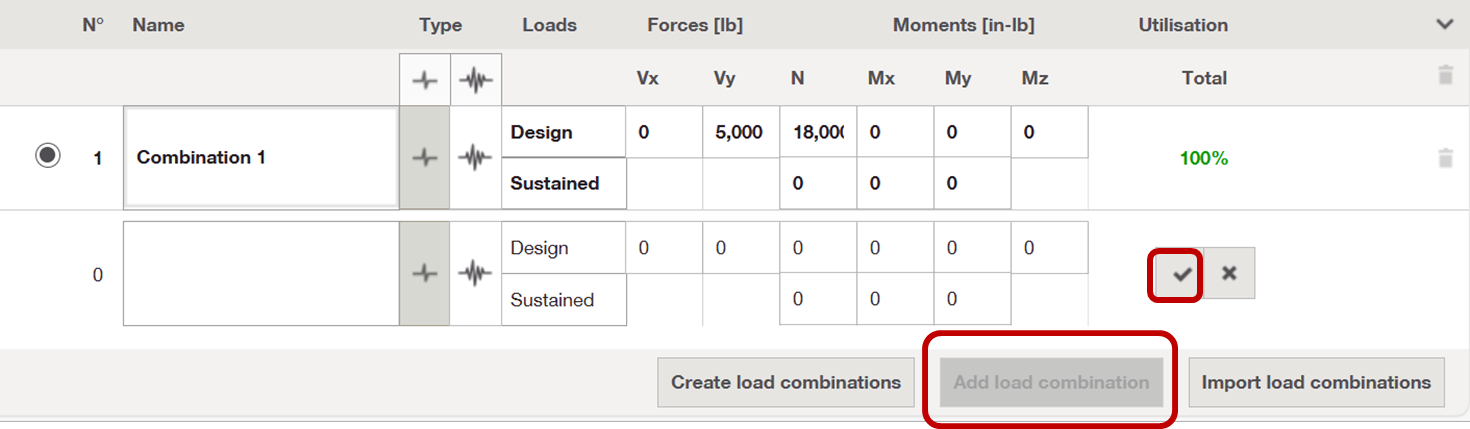

Click the check mark to accept, or the cross mark to delete the entry.
Click the delete symbol at end of row to delete selected load combination. -
Import load combinations

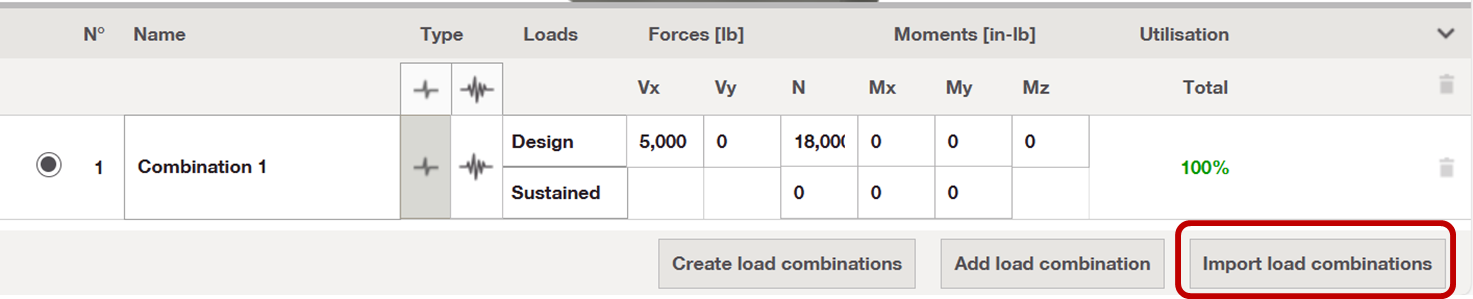

Select Import load combinations.

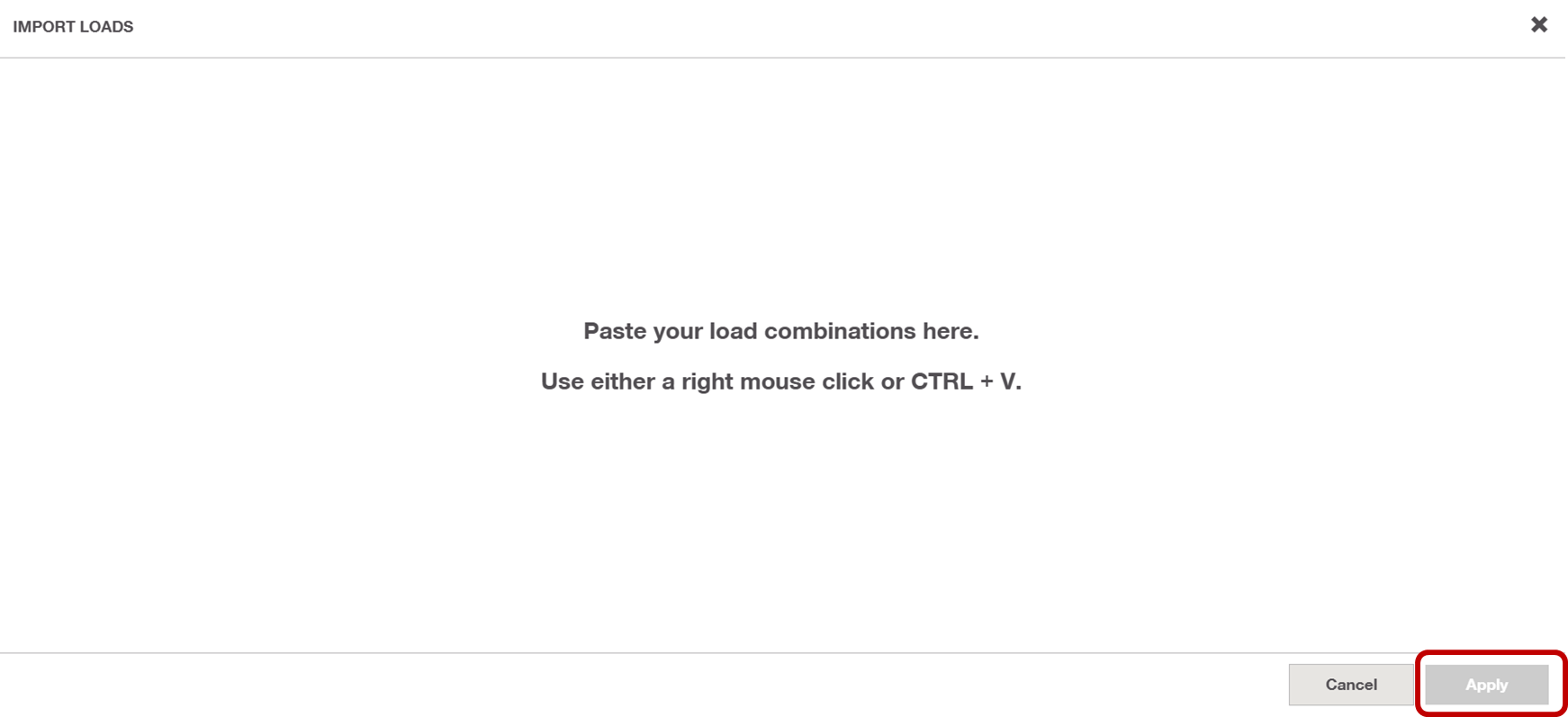

Paste your load combinations into the pop‑up window.
Click Apply to update the panel.
Troubleshooting

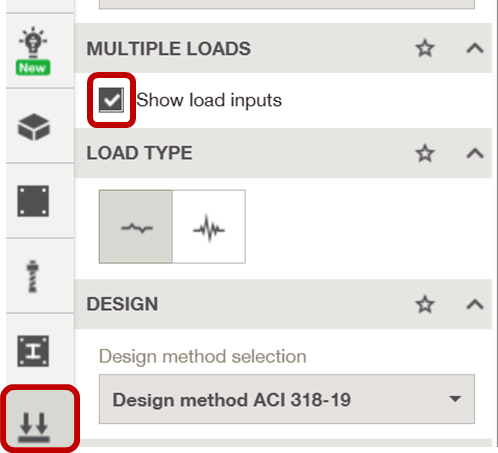

If the Load Combination panel is not visible, go to the Load / Calculation type tab on the left-hand side and enable Show load inputs.
