Summary
Defining the correct brick base material ensures that PROFIS Engineering applies the appropriate material properties needed for accurate anchor design.
Prerequisites
Make sure you:
- Are logged in to your PROFIS Engineering account
- Have opened the Anchoring to Masonry module
If needed, refer to the article How to access the Anchoring to Masonry module in PROFIS Engineering.
Step-by-step instructions
-
Open the Base material tab

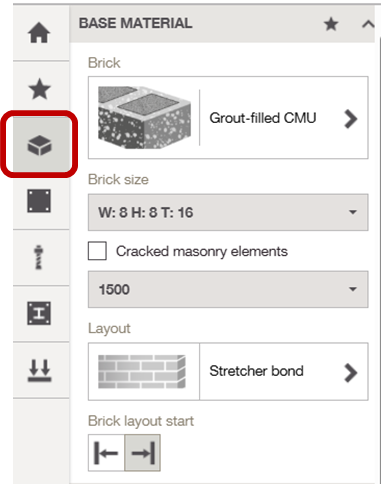

In your Anchoring to Masonry design workspace, navigate to the Base material tab on the left-hand side of the screen. -
Select brick type and size
Click on Brick.

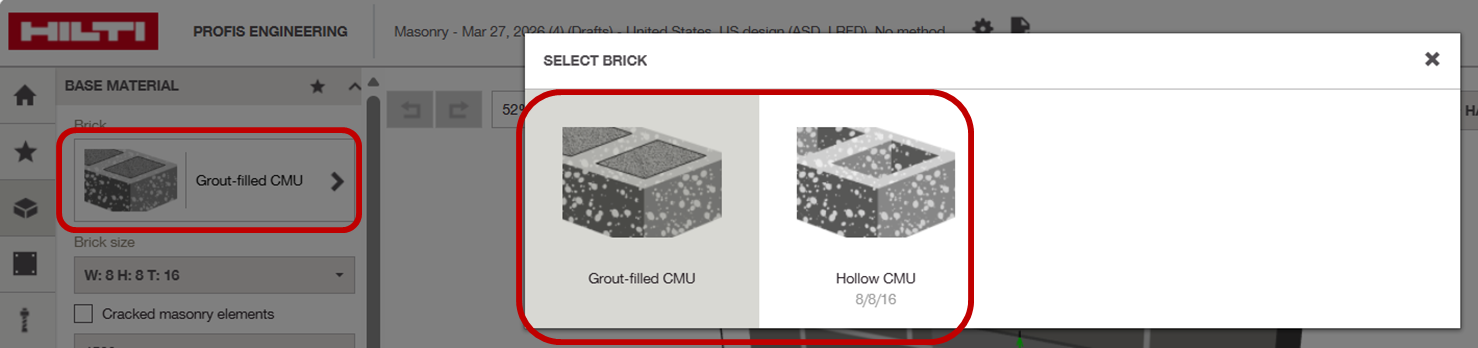

Choose the appropriate Brick type in the pop-up window.

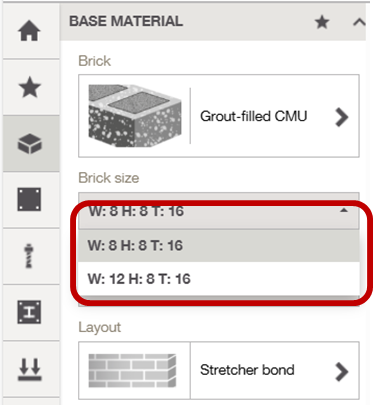

Choose the appropriate Brick size from the dropdown menu. -
Define brick strength and cracking condition
Select brick strength from dropdown list.

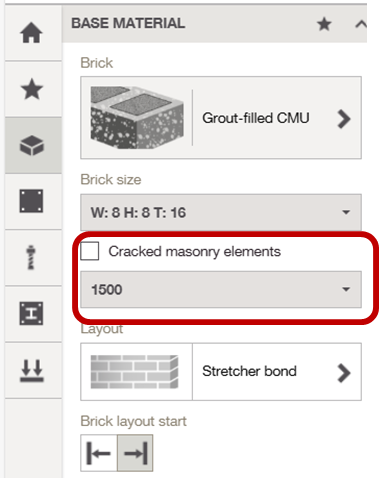

Enable Cracked masonry elements option, if applicable. -
Input brick layout

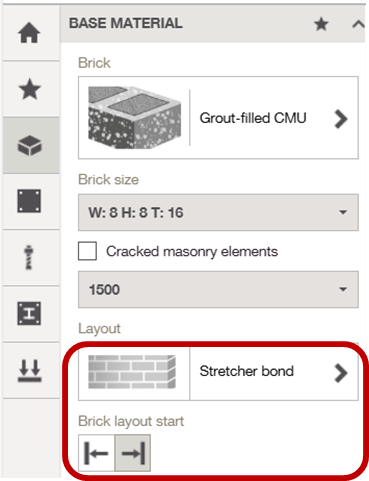

Under Layout, select brick layout pattern and staring point.
Tip
Choose brick type, brick size, and strength that realistically match the actual wall; avoid “optimistic” assumptions. A stronger base material may shift the governing mode.
