Summary
The 3D view allows you to adjust the visual orientation of your model, edit geometry directly, apply loads, and select products - all within an interactive 3D environment.
Prerequisites
Make sure you are logged in to your PROFIS Engineering account and have opened the Post-installed rebar module. If you need help accessing the module, click here for step‑by‑step instructions.
Ensure 3D editor is enabled.
Step-by-step instructions
-
Modify dimensions

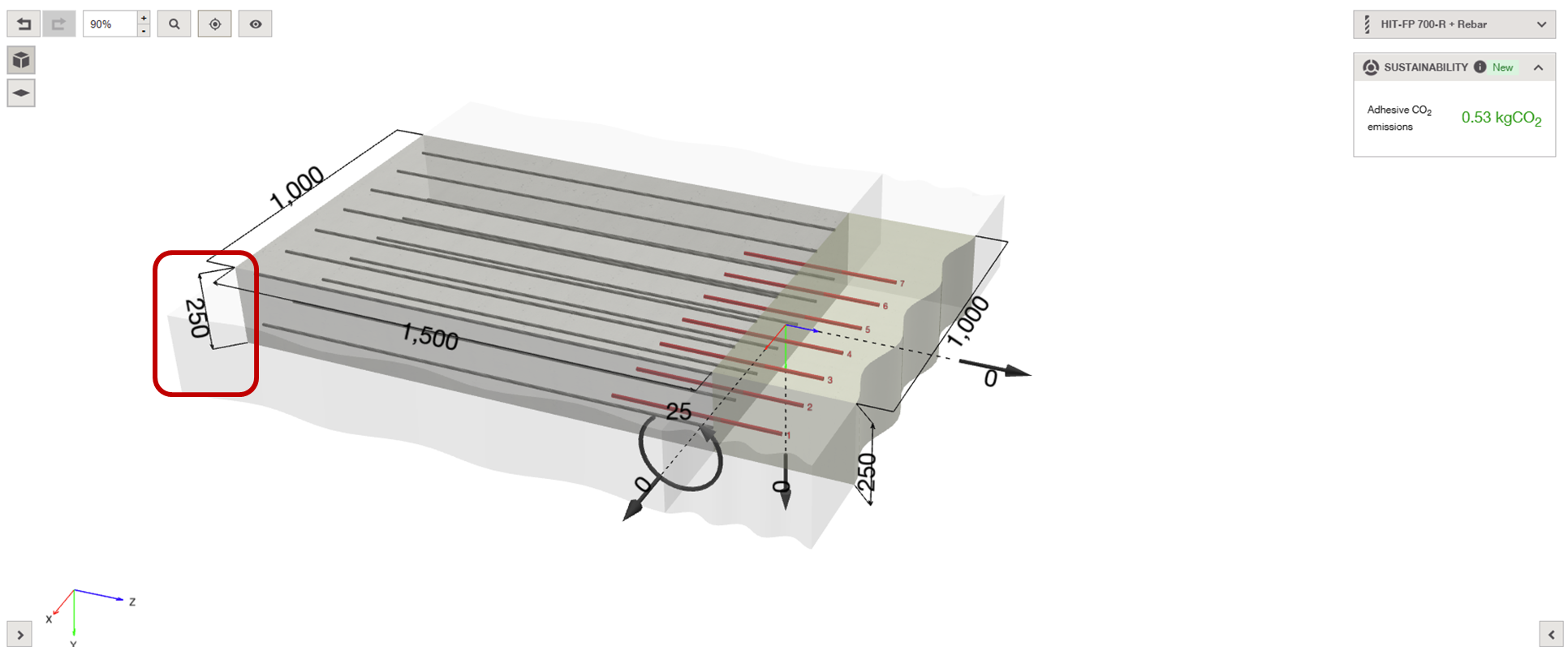

In the 3D view, click directly on any dimension label to edit. -
Input loads

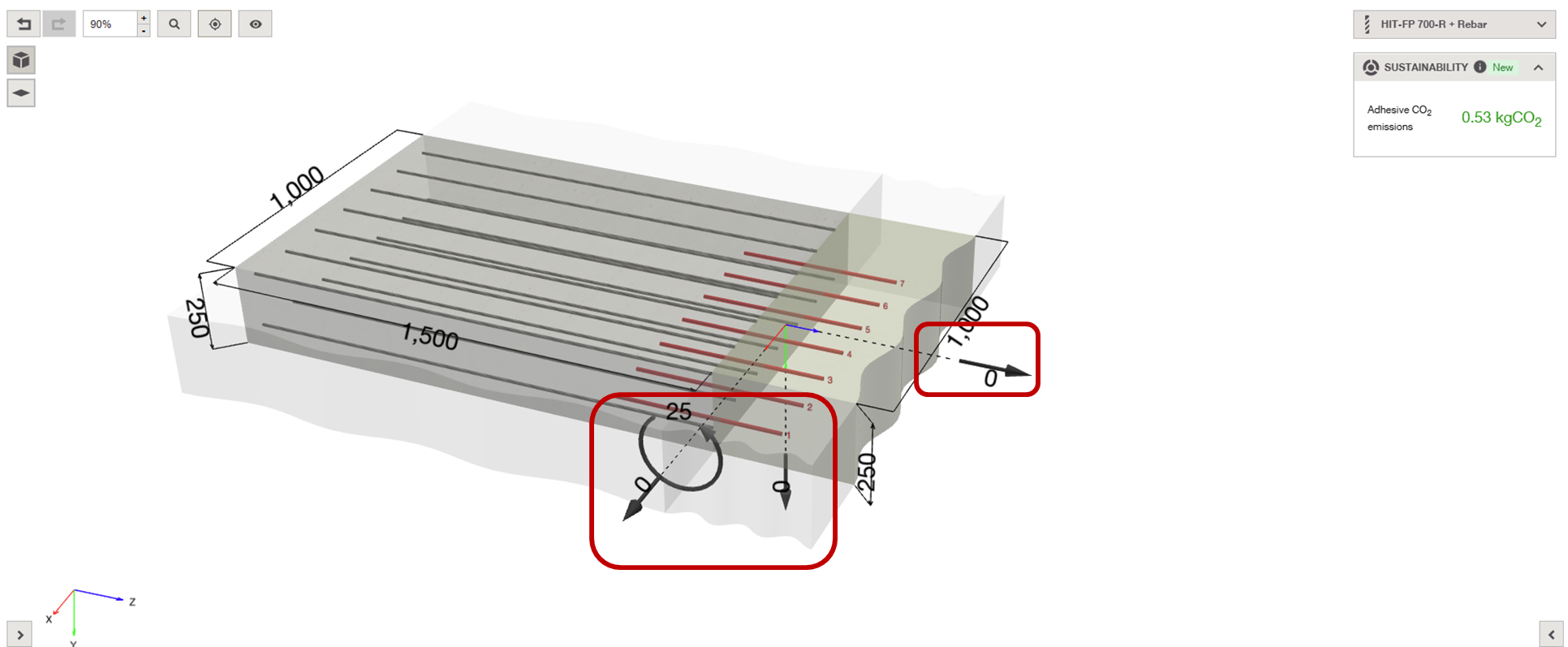

Click on the tension, shear, or moment load labels in the 3D view to enter load values. -
Select product

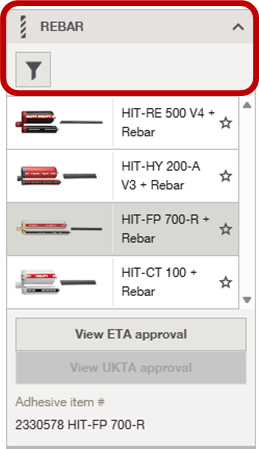

Click the product selector box in the top right corner of the 3D view to choose the product type, size, rebar grade, and to view product approval data. -
View Sustainability related information
Expand the sustainability tab to view CO2 emissions. -
Modify the view
Rotate: Left‑click and drag anywhere in the 3D view.
Pan: Right‑click and drag to shift the model.
Note: 3D model rotation button is included in new concrete tab.
Tip
For better workspace visibility, use the Zoom in/out, Reset camera, and Collapse menu options.
For more details, refer to the article Navigating the landing page to familiarise yourself with all available controls.
