Summary
Defining and modifying the concrete geometry ensures that PROFIS Engineering uses the correct member dimensions and edge distances for accurate concrete overlay design and realistic load‑transfer behaviour.
Prerequisites
Make sure you:
- Are logged in to your PROFIS Engineering account
- Have opened the Concrete overlay module
If needed, refer to the article How to access the Concrete overlay module in PROFIS Engineering.
Step-by-step instructions
-

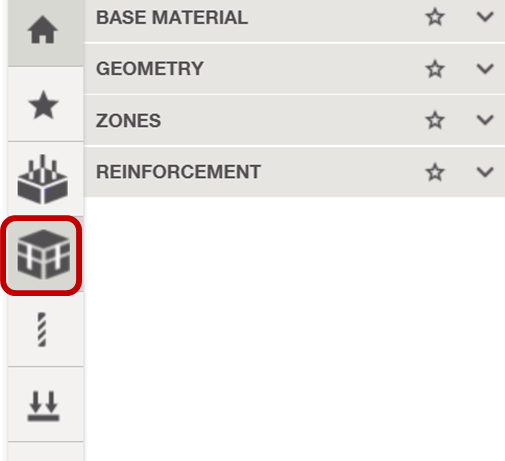

Open the Concrete member tab
In your Concrete overlay design workspace, navigate to the Concrete member tab on the left-hand side of the screen. -

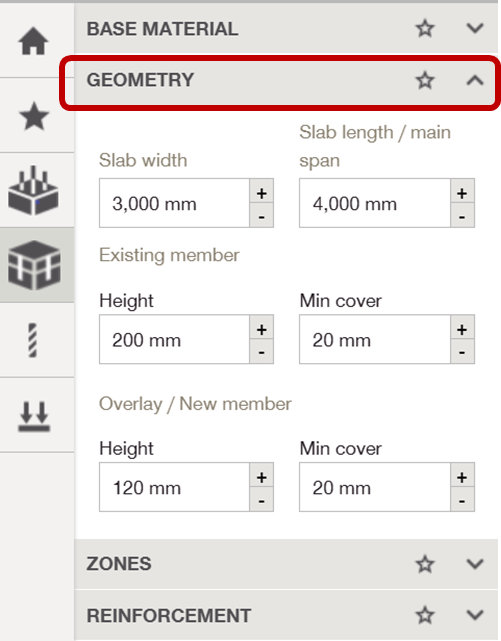

Go to Geometry
Here you can type in the dimensions of the existing and new concrete member. Alternatively, use the “+ / –” controls to increase or decrease the values.
Note: The input field change depending of the selected application.
