How to modify anchor plate position in Anchoring to Concrete module

Link copied!

Summary

Modifying the anchor plate position in PROFIS Engineering allows you to rotate the anchor plate to match the required orientation of the connection.


Prerequisites

Make sure you:

  • Are logged in to your PROFIS Engineering account
  • Have opened the Anchoring to Concrete module

If needed, refer to the article How to access the Anchoring to Concrete module in PROFIS Engineering.


Step-by-step instructions

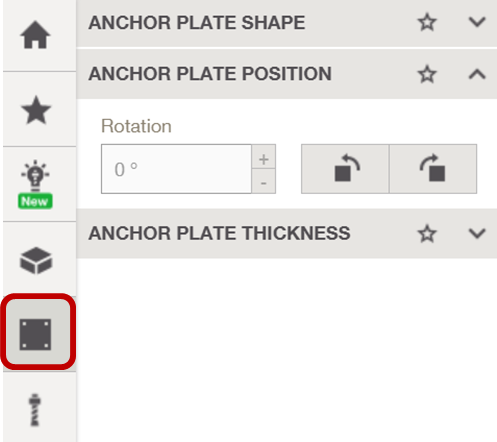

  1. Open the Anchor plate tab
    In your Anchoring to Concrete design workspace, navigate to the Anchor plate tab on the left-hand side of the screen.

  2. Go to Anchor plate position
    Use rotation controls to turn the anchor plate left or right. Each click rotates the plate by 90 degrees.
