Summary
The 2D view allows you to edit geometry and select products - all within an interactive 2D environment.
Prerequisites
Make sure you:
- Are logged in to your PROFIS Engineering account
- Have opened the Concrete to Concrete module
- Have enabled the 2D editor
If needed, refer to the article How to access the Concrete to Concrete module in PROFIS Engineering.
Step-by-step instructions
-
Modify dimensions

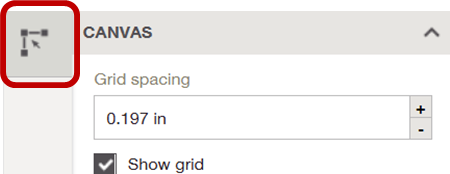

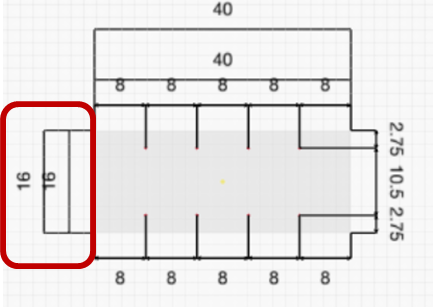

In the 2D view, click directly on any available dimension label to edit it.Tip: You can adjust your grid settings by clicking on the layout tab in the left-hand panel.
-
Select product

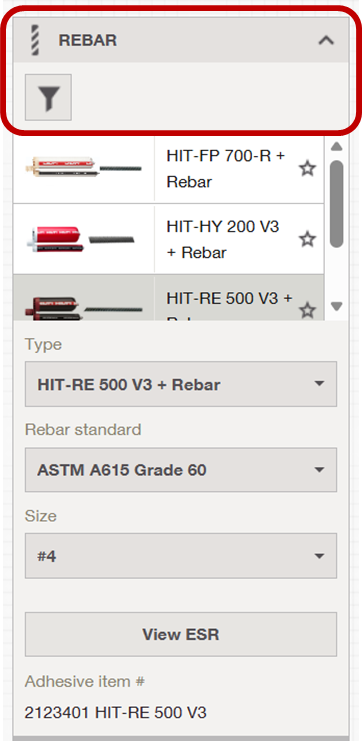

Click the product selector box in the top right corner of the 2D view to choose the product type, rebar grade, rebar size and to view product approval data. -
Modify the view
Pan: Click the Pan model button to drag and reposition the model.
View: Choose between top, side and front views.
Tip
For better workspace visibility, use the Zoom in/out, Reset camera, and Collapse menu options.
For more details, refer to the article Navigating the landing page to familiarize yourself with all available controls.
