Summary
Selecting the correct metal deck type ensures that PROFIS Engineering applies the appropriate deck geometry, flute orientation, and structural configuration for concrete‑over‑metal deck applications.
Prerequisites
Make sure you:
- Are logged in to your PROFIS Engineering account
- Have opened the Concrete-over-metal-deck module
If needed, refer to the article How to access the Concrete-over-metal-deck module in PROFIS Engineering.
Step-by-step instructions
-

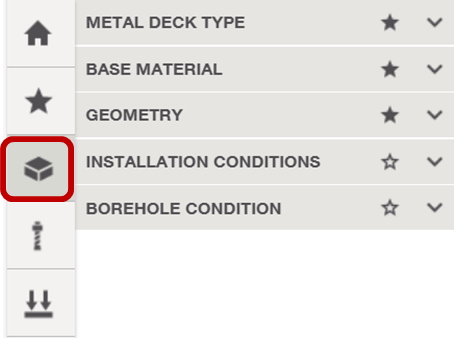

Open the Base material tab
In your Concrete-over-metal-deck design workspace, navigate to the Base material tab on the left-hand side of the screen.Define Metal deck type
-

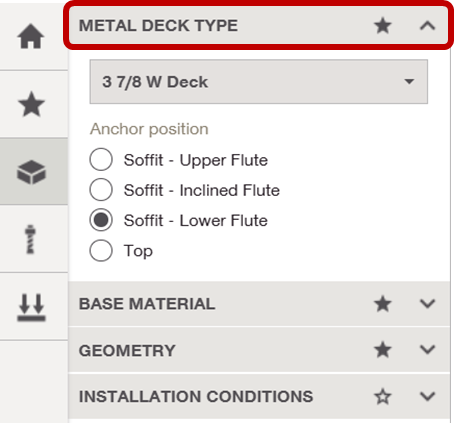

Open the Metal deck type section
Expand the Metal deck type section to view the available inputs. -

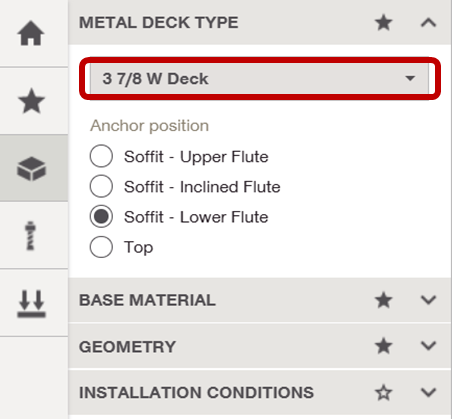

Select the Metal deck
Select the deck profile from the dropdown. -

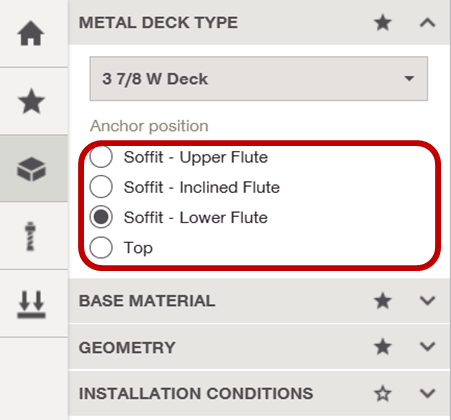

Choose the Anchor position
Select the Anchor position from available options.
