How to view results in Diaphragm Design module

Prerequisites

Make sure you:

• Are logged in to your PROFIS Engineering account
• Have opened the Diaphragm Design module

If needed, refer to the article How to access the Diaphragm Design module in PROFIS Engineering.

Step-by-step instructions

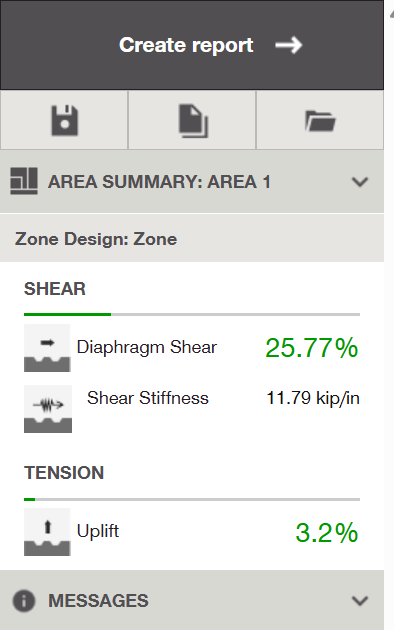

1. Go to the Results and Notifications panel
   In your Diaphragm Design workspace, go to the Results and Notifications panel on the right-hand side of the screen.
   Expand or collapse any section using the arrow next to it.



2. View Area summary

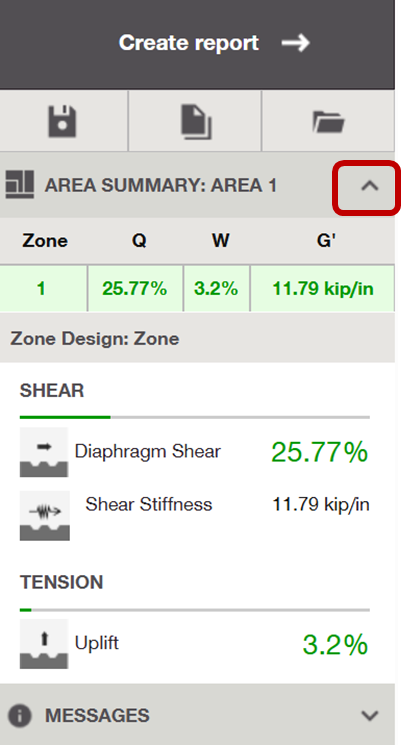

   Under Area summary, you can review zone wise utilization.



3. View Zone Design

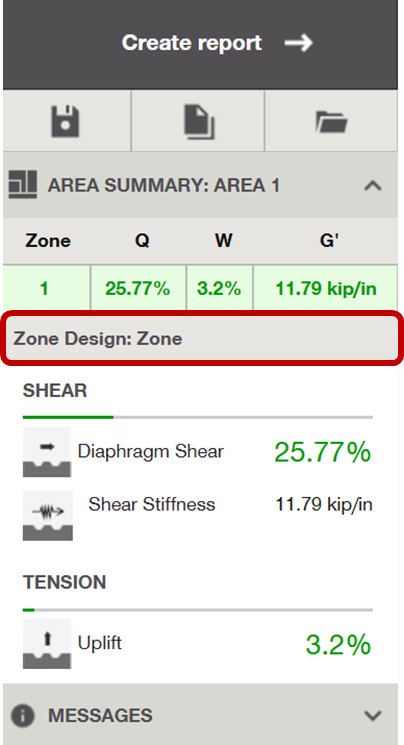

   Under Zone Design, you can review the design results based on your inputs.



4. View Notifications

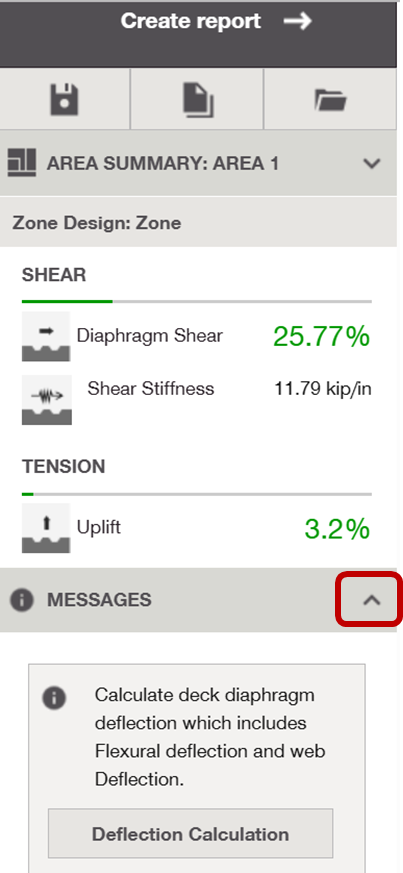

   Open the Messages section to review design tips, warnings, and error messages.



5. Save and generate detailed design report

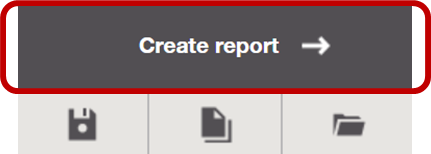

   Click Create report on the right-hand side of the screen.

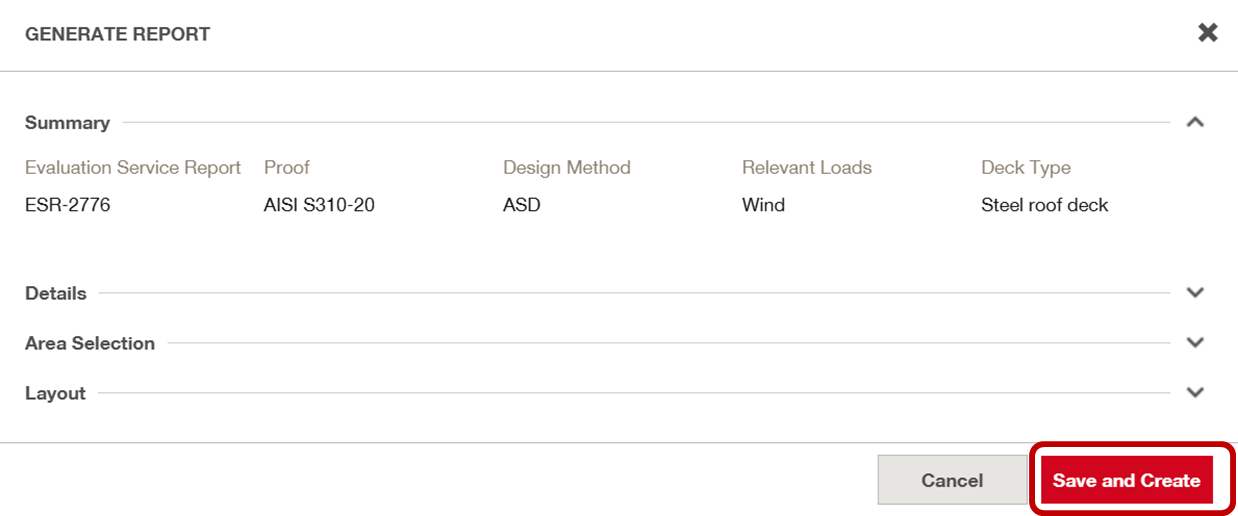

   In the pop‑up window, customize as needed, select Save and create to create a full detailed design report.
